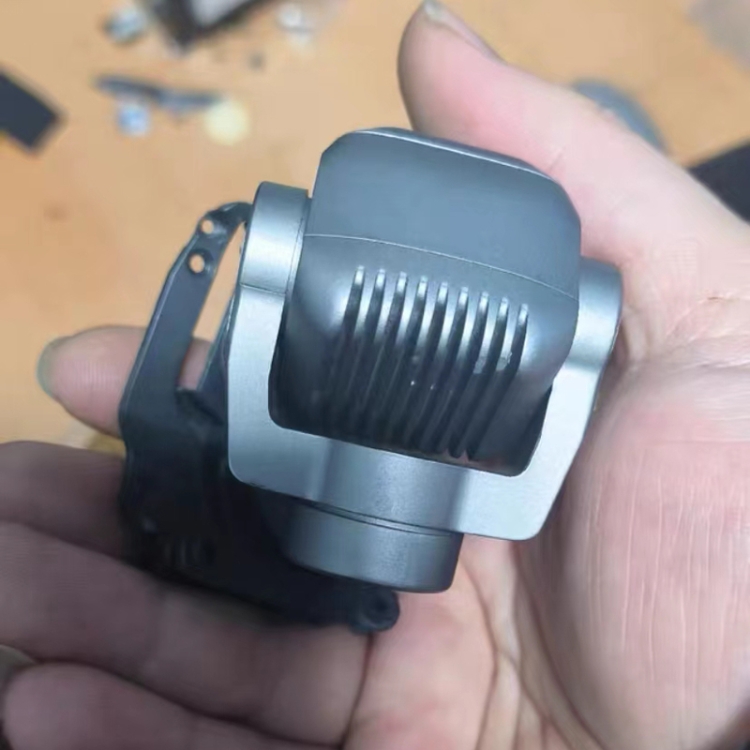

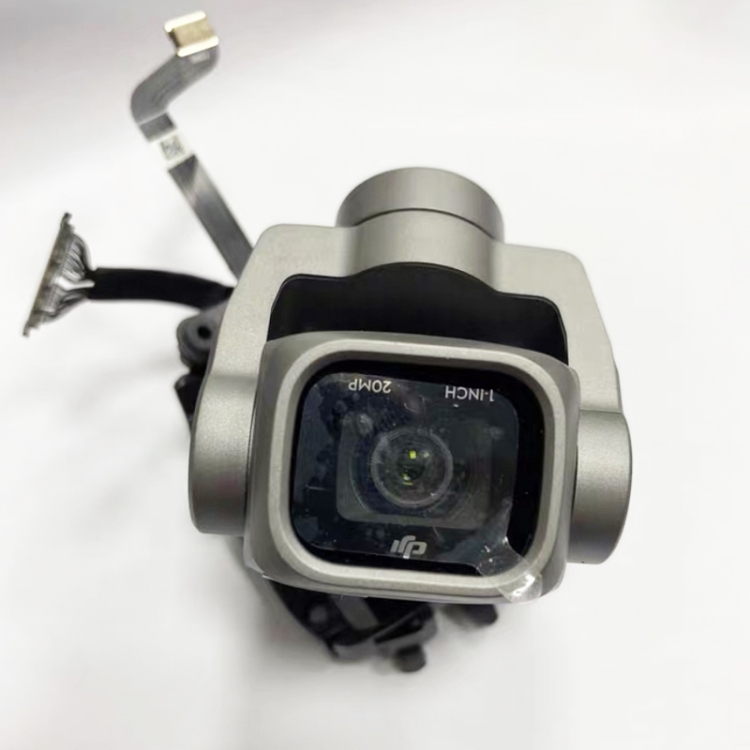

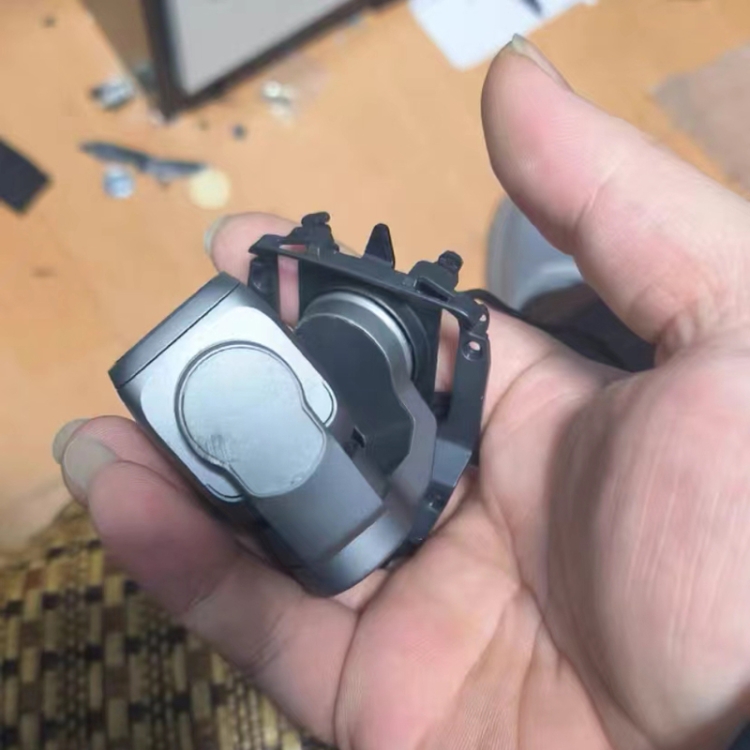

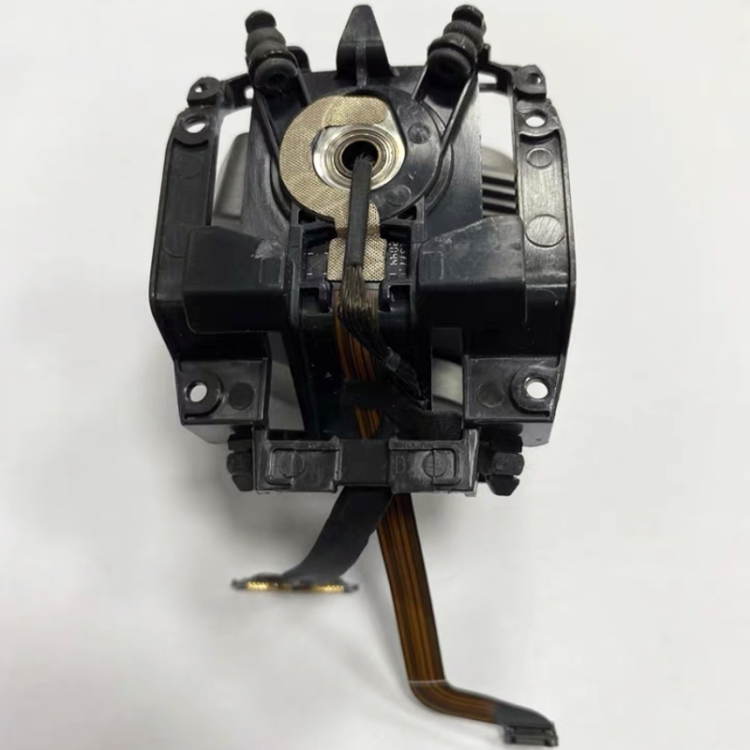

Second-Hand DJI AIR 2S Gimbal Assembly With Lens Gimbal Minor Flaws

1. Applicable models: for DJI Air 2S drone
2. Camera:
– Sensor 1 inch CMOS
– Effective pixels: 20 million pixels; 2.4μm pixel size
3. Lens:
– Field of view: 88 degrees
– Equivalent to 35mm format: 22mm
– Aperture: f/2.8
– Shooting range: 0.6m and above
4. ISO range:
– Video: 100-3200 (auto), 100-6400 (manual), 10-bit Dlog-M video, 100-800 (auto), 100-1600 (manual)
– Photo: 100-3200 (auto), 100-12800 (manual)
5. Still image size: 20MP, 5472×3648 (3:2), 5472×3078 (16:9)
6. Still photography mode:
– Single shot: 20MP
– Continuous shooting: 20MP (continuous continuous shooting)
– Auto exposure bracketing (AEB): 20MP, 3/5 bracketed frames, 0.7EV deviation
– Timing: 20MP, 2/3/5/7/10/15/20/30/60s
– Smart Photo (including HDR and HyperLight): 20MP
7. HDR panorama shooting:
– Vertical (3×1): 3328×8000 (W×H)
– Wide angle (3×3): 8000×6144 (W×H)
– 180 degrees (3 × 7): 8192 × 3500 (W × H)
– Sphere (3×8+1): 8192×4096 (W×H)
– JPEG/DNG (RAW)
8. Video resolution:
– 5.4K: 5472×3078 @ 24/25/30 fps
– 4K Ultra HD: 3840×2160 @ 24/25/30/48/50/60 fps
– 2.7K: 2688×1512 @ 24/25/30/48/50/60 fps
– FHD: 1920×1080 @ 24/25/30/48/50/60/120 fps
– MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC)
9. Video bit rate: up to 150 Mbps
10. Supported file systems: FAT32/exFAT
11. Supported capacity: up to 256GB Micro SD card
12. Digital zoom:
– When recording 10-bit video and 120fps video, zoom recording is not available
– 4K/30fps: 4x
– 2.7K/60fps: 4x
– 2.7K/30fps: 6x
– 1080p/60fps: 6x
– 1080p/30fps: 8x
13. Gimbal: stable 3 axes (tilt, roll, swing)
14. Mechanical range:
– Tilt: -135 degrees to 45 degrees
– Roll: -45 degrees to 45 degrees
– Pan: -100 degrees to 100 degrees
– Pan axis is not controllable
15. Controllable range:
– Tilt: -90 degrees to 0 degrees (default), -90 degrees to 24 degrees (extended)
– Controllable speed (tilt): up to 100 degrees / s
