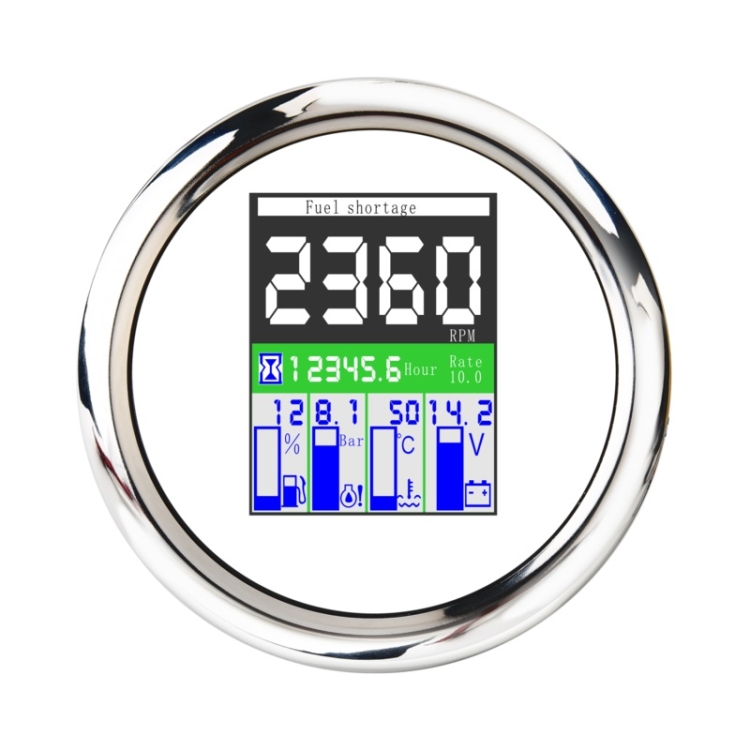

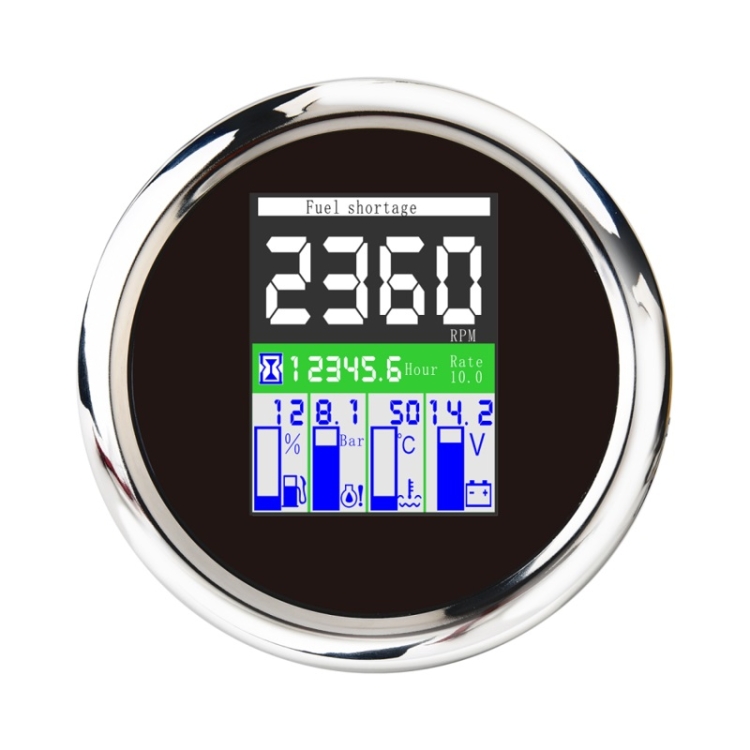

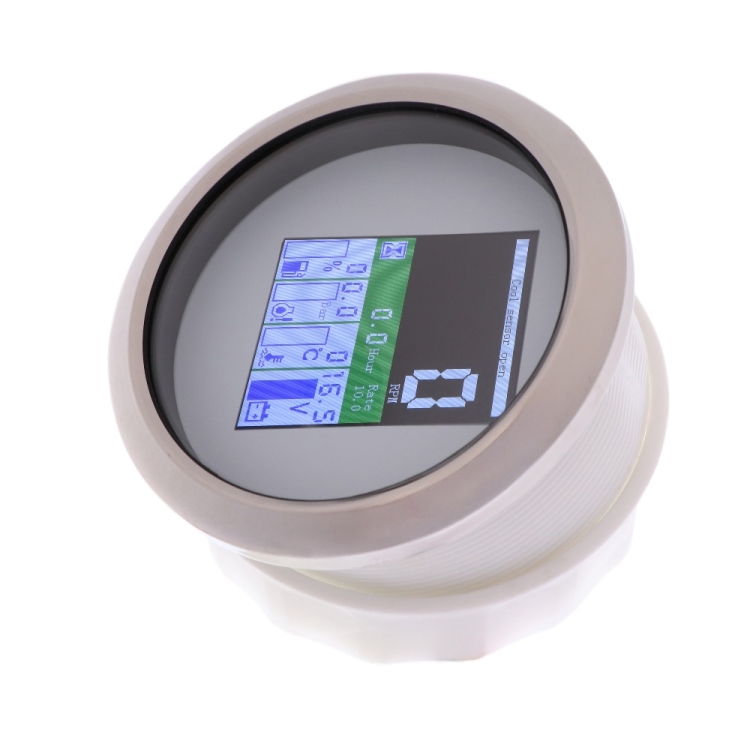

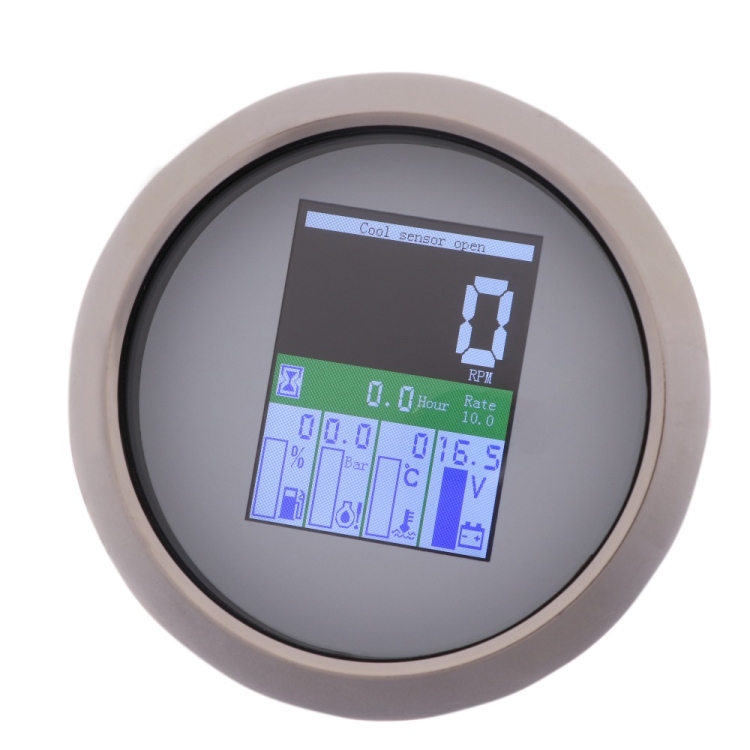

TFT 9-32V 5 In 1 Multifunction LED Display Car Meter
AED 573.36
Estimated Delivery: 9 Feb – 13 Feb (3–7 working days)
Description
1. Operating voltage: DC 9-32V
2. Operating current: less than 120mA
3. Waterproof rating: IP67, can work normally underwater 1m
4. Engine speed: 0-9999RPM
5. Engine oil pressure: 0-10bar
6. Water/oil temperature: 40-120 degrees Celsius
7. Voltage: 9-32V
8. Fuel level: 0-100 percent
9. Accumulated engine hours: 0.0-99999. 9H
10. Material: stainless steel + plastic
11. Features: delicate and compact, durable, waterproof and dustproof, easy to install, LED display, easy and clear reading
12. Weight: about 350g
13. Dial size: about 9cm

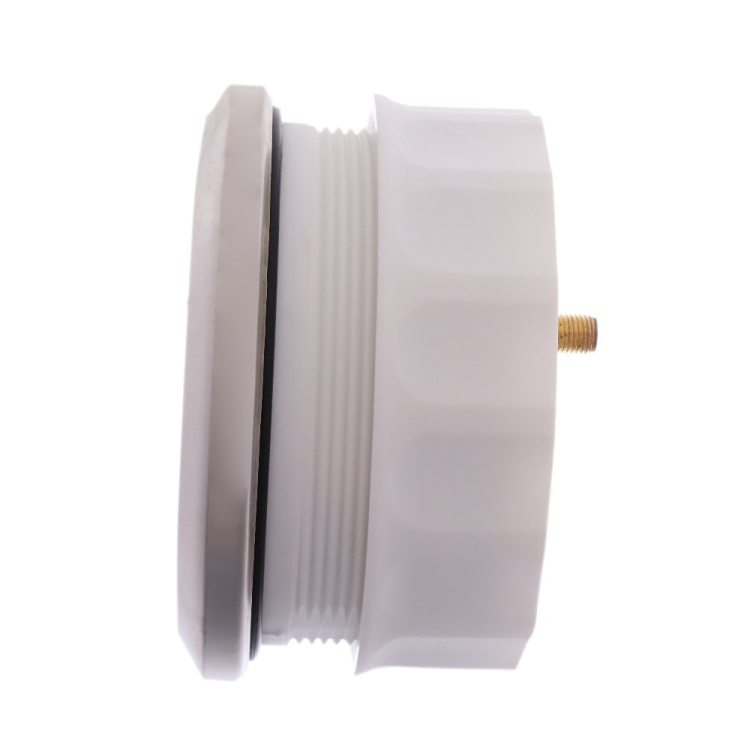

14. Installation size: about 8.5cm
Alarm information:
1. Oil pressure sensor disconnection alarm, oil pressure too low alarm
2. Water temperature/oil temperature sensor disconnect alarm, high temperature alarm
3. Low battery voltage alarm
4. Low fuel level alarm

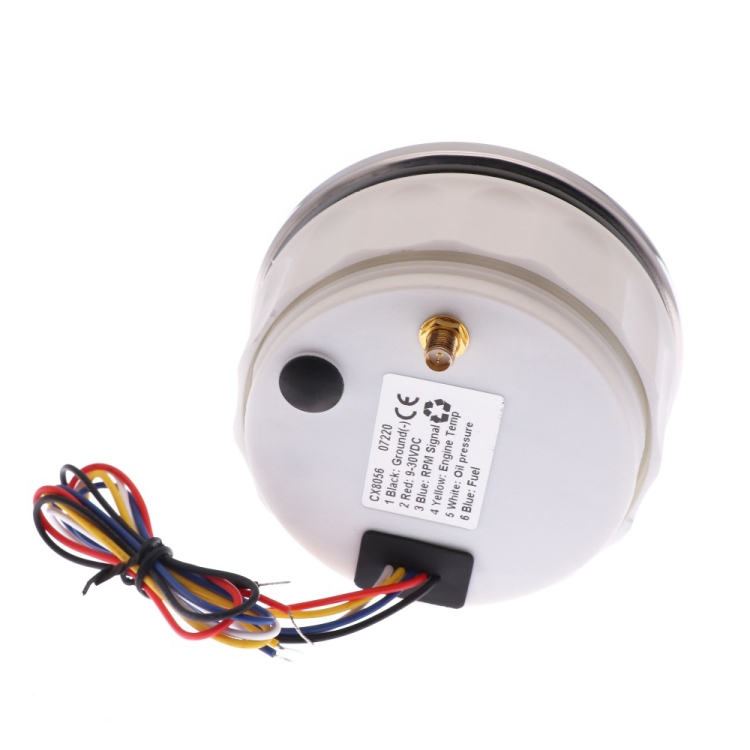

Wiring method:
1. Black wire: power negative (-)
2. Red wire: 9-32V
3. Blue wire: RPM signal
4. Yellow wire: water temperature/oil temperature signal
5. White wire: oil pressure signal
6. Blue wire: oil level signal
Specifications
Additional information
| Weight | 0.504 kg |
|---|---|
| Dimensions | 12.0 × 10.0 × 10.0 cm |
| è§„æ ¼ | Black Background, White Background |
| Option | PLG2 BN, PLG2 BS, PLG2 WS, PLG2 WG, PLG2 BG, 5 In 1 Black Background, 5 In 1 White Background, TNG85 Silver Frame With Black Background, TNG85 Silver Frame With White Background, TNG85 Black Frame With Black Background |
