ToolkitRC M7 Boat Model Aviation Li-Po Battery Balance Charger

1. Power enhancement, output power up to 10A/200W

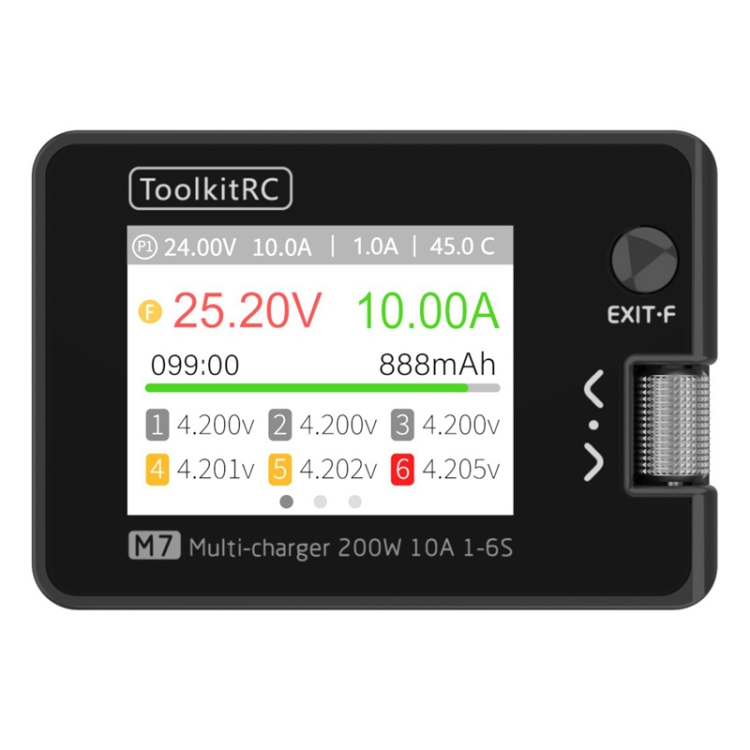

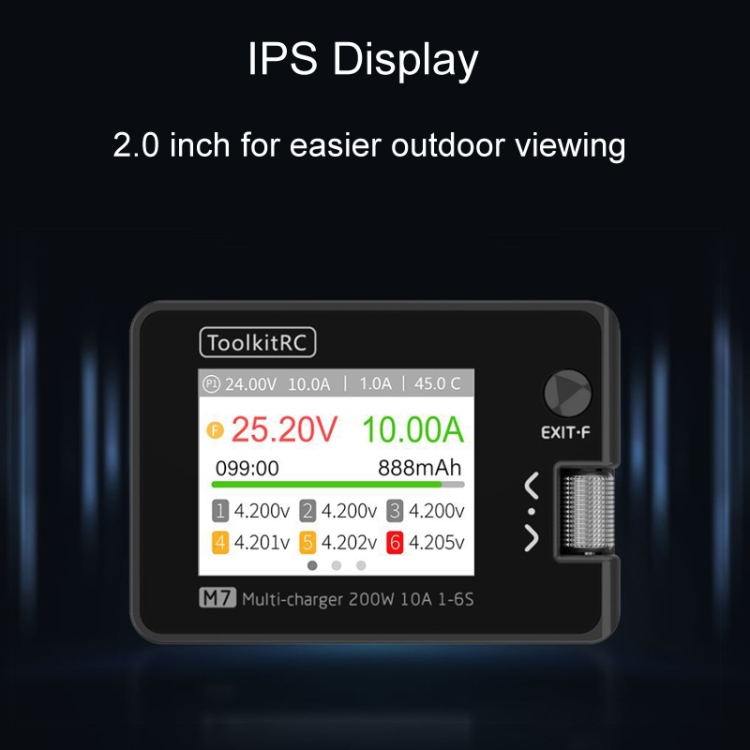

2. IPS high brightness display, outdoor viewing more easily

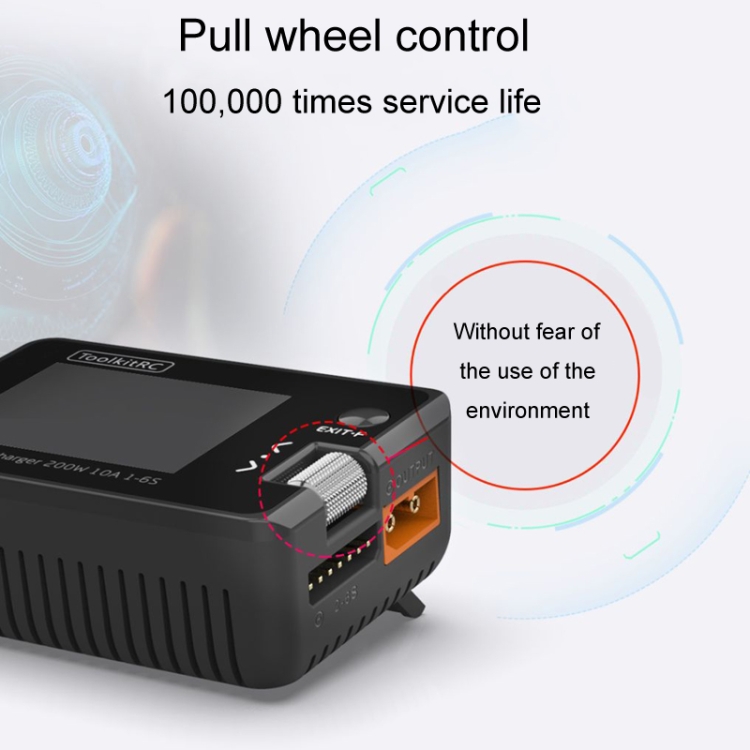

3. Pull wheel control, better feel, 100,000 times service life, no fear of the use of the environment

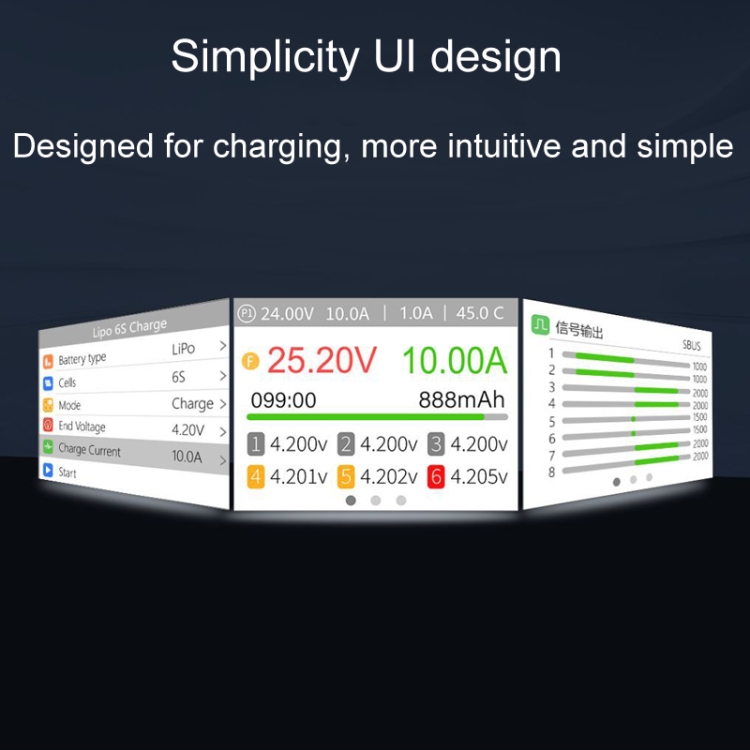

4. Charging UI design, more intuitive and simple

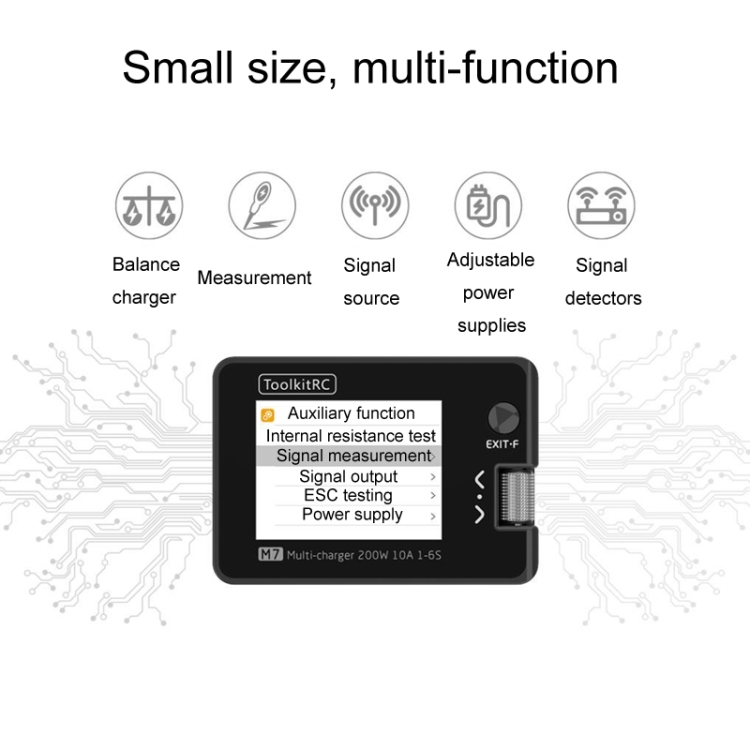

5. Mini size, multi-function integration, to cope with a variety of testing needs

Parameters:
1. Input voltage: 7-28V MAX 12A
2. Battery type: LiPo LiHv LiFe Lion 1-6S; NiMh 1-16S Pb 1-10S
3. Charging power: 0.1-10A 200W
4. Discharge power: recycling mode: 0.1-10A 200W; normal mode: 0.1-3A 10W
5. USB: 2.1A 5.0V
6. PWM measurement: 880us-2200us 20-400Hz
7. PPM measurement: 880us-2200us x 8CH 20-50Hz
8. SBUS measurement: 880us-2200us x 16CH 20-100Hz
9. Voltage: 1.0V-5.0V 1-6S
10. PWM output: 500us-2500us 20-1000Hz
11. PPM output: 880us-2200us x 8CH 50Hz
12. SBUS output: 880us-2200us x 16CH 74Hz
13. Power supply: 1-10A 1-28V mode: CC+CV
14. LCD display: 2.0-inch IPS RGB, 320 x 240 pixels
