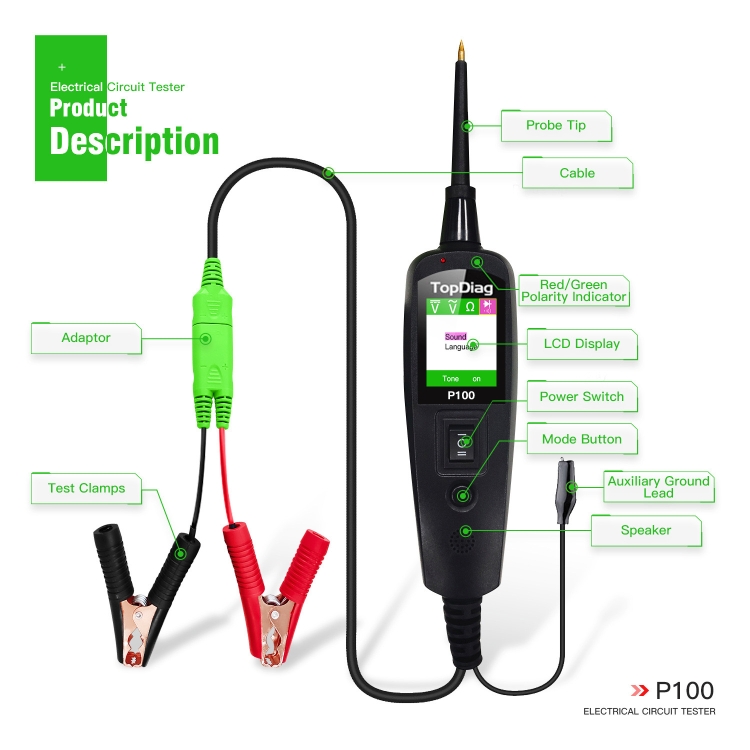

TopDiag P100 Car Circuit Intelligent Analyzer Diagnostic Instrument, Cable Length: 10m

AED 490.42 AED 490.42

In stock

AED 490.42 AED 490.42

Standard Delivery Timeframe: 3-7 Working Days

Description

1. The input protection is strengthened inside the instrument, and it has protective measures to prevent reverse polarity connection, excessive voltage connection, and poor contact of the test chuck, which is safer during use.
2. Powered by cigarette lighter or car battery.
3. Supported languages: English, German, French, Spanish, Italian, Portuguese, Russian
4. Widely used in automobile and motorcycle maintenance industry.
5. Parameters:
Screen size: TFT color display, 160×128
Working temperature: 0-60 degrees Celsius
Storage temperature: 40-70 degrees Celsius
External power supply: powered by 12 or 24V battery
DC voltage range: 0-65V
Resistance measurement range: 0-200K Ohm
Rated current: 0-10A
Size: 165x40x27mm

Specifications

Additional information

Weight1.228 kg
Dimensions24.6 × 17.6 × 7.6000000000000005 cm
Option

TopDiag BT400, TopDiag P200, TopDiag P50, TopDiag P100 Pro, TopDiag P100 2m, TopDiag P100 10m, SC-400, BT500
