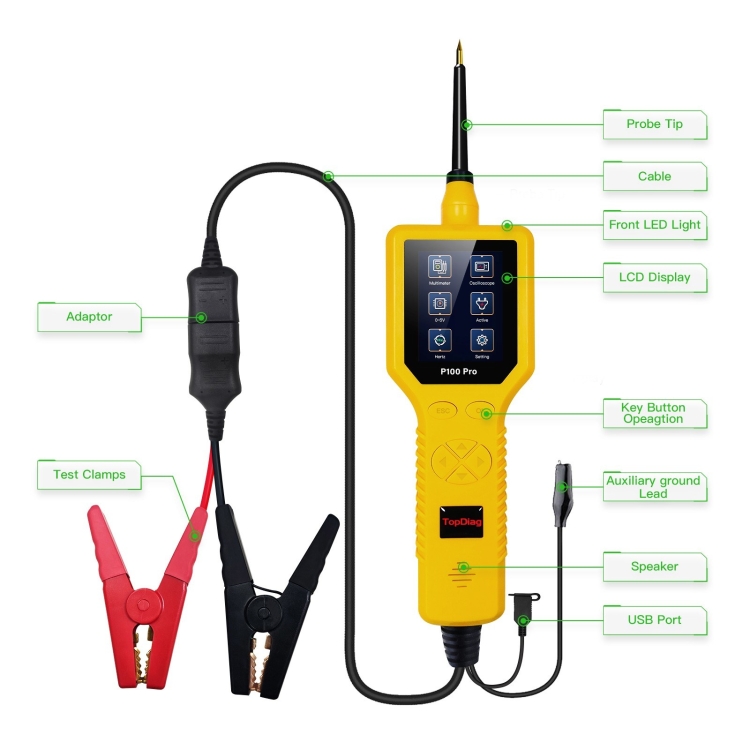

TopDiag P100 Pro Car Circuit Intelligent Analyzer Diagnostic Instrument

1. Supported languages: English, Simplified Chinese, Traditional Chinese, French, Spanish, Thai, Italian, Polish, Vietnamese, Russian, Malay, Portuguese, Arabic, German, Tagalog, Korean, Indonesian

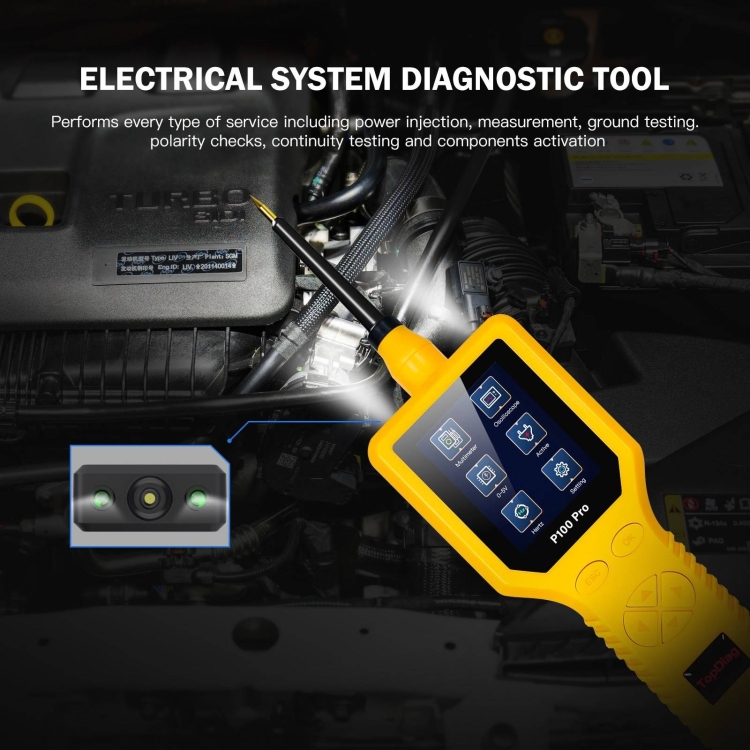

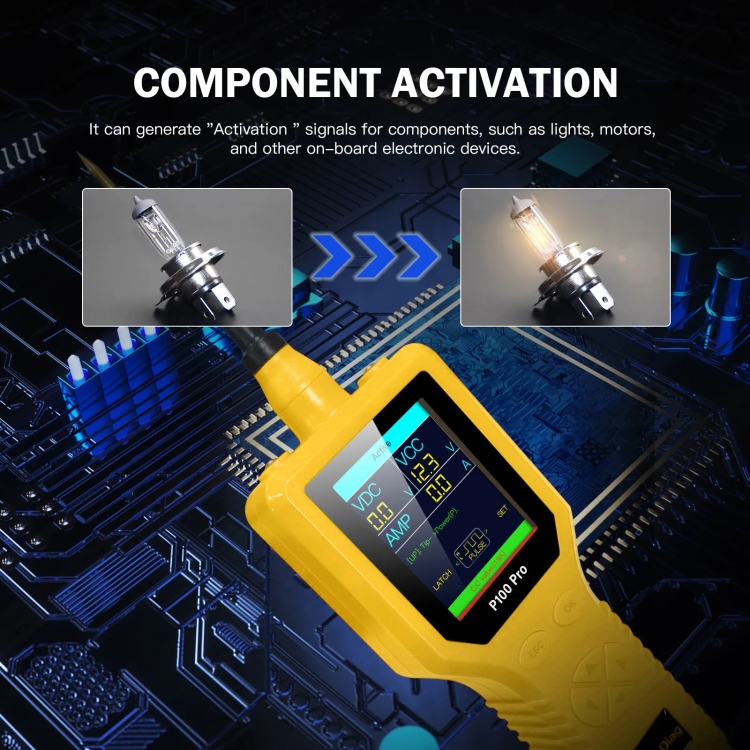

2. It can effectively realize the on-off and activation test of various parts of the car, such as car bulbs, motors, ECU and other components,

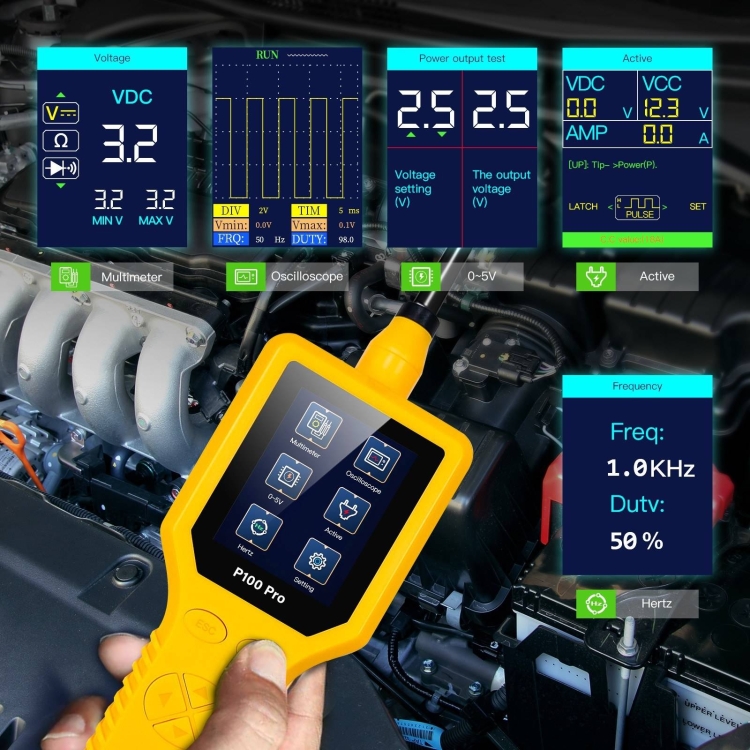

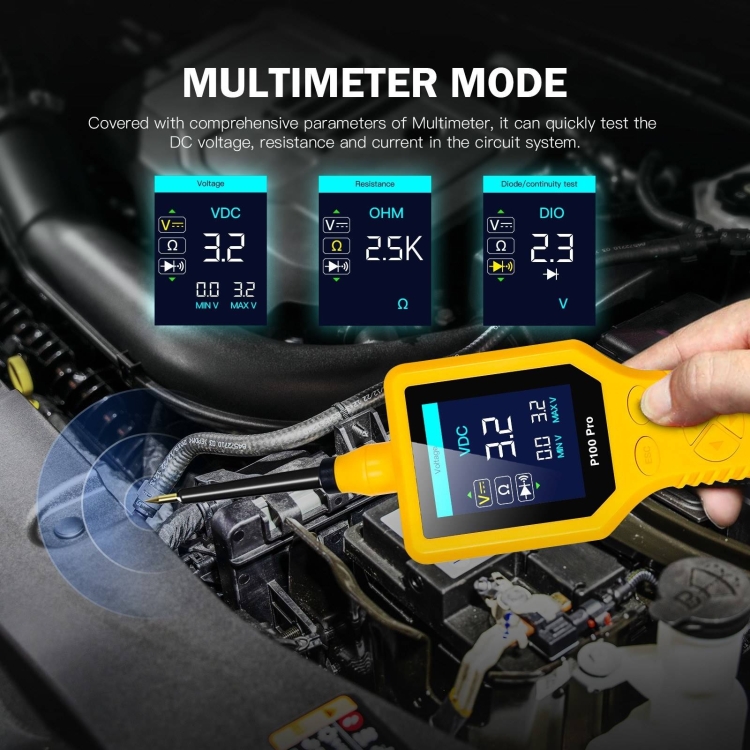

3. The multimeter function includes commonly used parameters, which can quickly test the voltage, resistance, etc. in the circuit system.
4. Widely used in automobile and motorcycle maintenance industry.
5. Parameters:
Screen size: 2.4 inch TFT true color display, 240x320DPI
Working temperature: 0-60 degrees Celsius
Storage temperature: 40-70 degrees Celsius
External power supply: powered by 12 or 24V battery
Working voltage: 9-30V
Measuring voltage: 0.1-100V
Resistance measurement range: 1-200K Ohm
Current measurement range: 0-18A
Continuous current: 18A max
