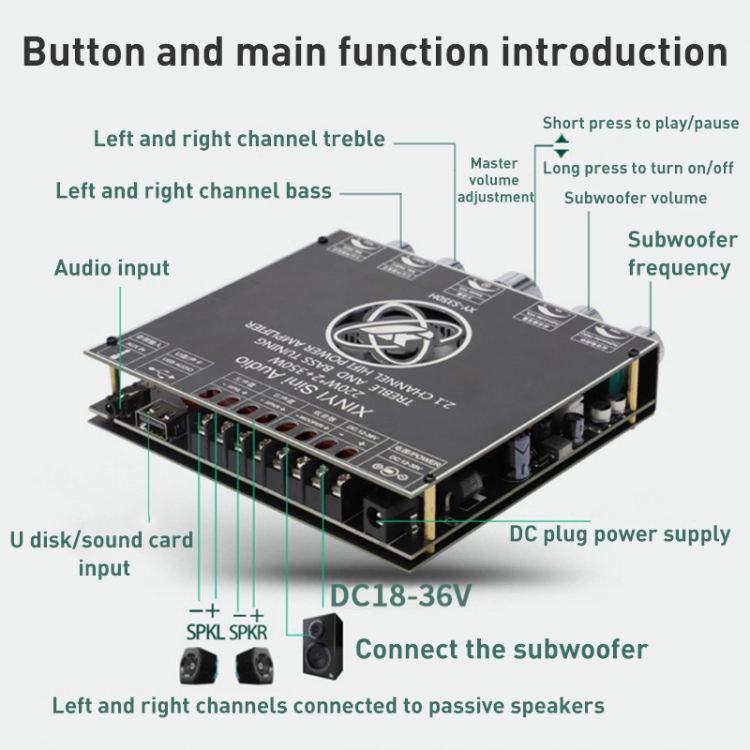

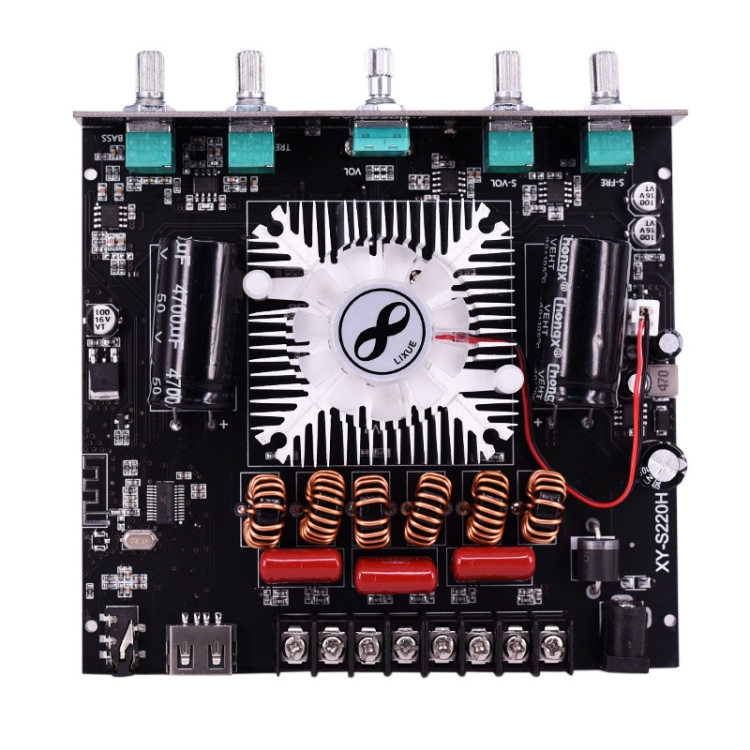

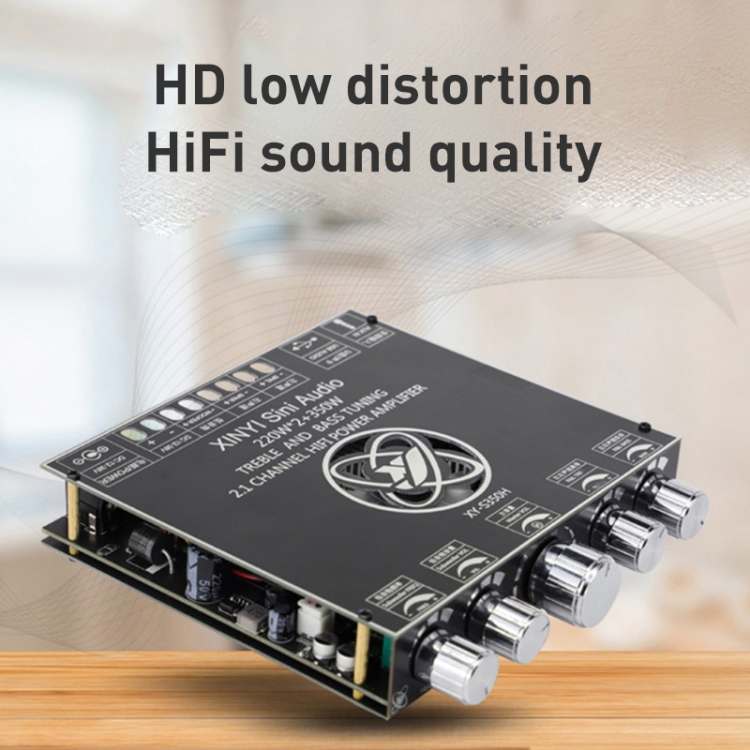

TPA7498e Power Amplifier Board Bluetooth Module Stereo 2.1 Audio Treble and Bass Control Subwoofer
Roll over image to zoom in
Click to open expanded view

TPA7498e Power Amplifier Board Bluetooth Module Stereo 2.1 Audio Treble and Bass Control Subwoofer

    AED 264.11 AED 264.11

    In stock

    SKU: DIY0553 Category: Tags: , ,

    AED 264.11 AED 264.11

    Standard Delivery Timeframe: 3-7 Working Days

    Description

    1. Model: XY-S220H
    2. Item: 2.1 channel Bluetooth-compatible audio amplifier board
    3. Power supply: above DC12-38V/10A
    4. Bluetooth-compatible version: 5.1
    5. Audio channel: 2.1 channel
    6. Audio input: Bluetooth-compatible+AUX+U disk+USB sound card
    7. Audio output: left and right channels + subwoofer
    8. Frequency range: 20HZ–20KHZ
    9. Volume adjustment: high-end encoder knob adjustment, smooth feel
    10. Left and right channel maximum output power: 160W/4ohms—-36V DC, 80W/8ohms—36V DC
    11. Subwoofer maximum output power: 220W/3ohms—-36V DC, 160W/4ohms—-36V DC
    12. Protection mechanism: overvoltage, undervoltage, clipping, short circuit, overheating, etc.
    13. Unique function: Support Sinilink-APP to modify the Bluetooth-compatible name, set the 14. Bluetooth-compatible password, turn off/on the prompt tone

    Specifications

    Additional information

    Weight0.409 kg
    Dimensions15.0 × 12.0 × 4.0 cm
