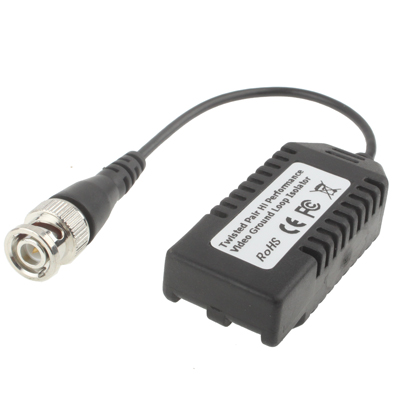

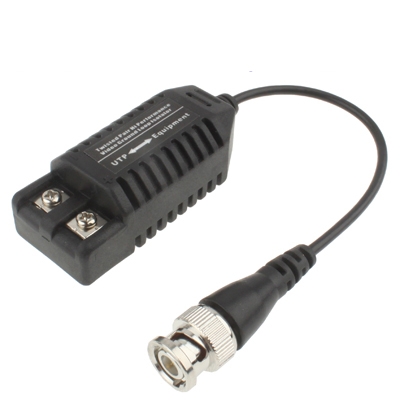

Twisted Pair Hi-performance Video Ground Loop Isolator
AED 144.36 AED 144.36
Estimated Delivery: 10 Feb – 16 Feb (3–7 working days)
Description
Description:
1) BNC Male to Terminal block with 15cm mini Coax Cable
2) Passive, no power required
3) Prevents video-signal distortion caused by video ground loops
4) Eliminates picture tearing , cross talk and rolling
5) Built in video BALUN, perfect to work with DVR to immunity DVR interference , for extra interference rejection
6) Built in TVS (Transient Voltage Suppressors) for surge protection
7) Insertion loss: 0.5dB
8) Frequency response: 0-3dB at 10Mhz
9) Input / output resistance: 75ohm
10) Isolation voltage: DC 600V
11) Insulation resistance: 100m ohm
12) Transient voltage suppressors: 12Vrms
Specifications
Additional information
| Weight | 0.070 kg |
|---|---|
| Dimensions | 0.0 × 0.0 × 0.0 cm |
| SKU | |
| Option | 1-CH, CYL-106C, S-Video / BNC, Passive Video Balun, 8 CH UTP, 4 CH UTP, 202E, 4 Channel Processor, HD204A, CM1001R, TGP001, 202C-HD, PVD-, 202P, 202P-HD, HD204A-F, HD3015, 213B-C |
