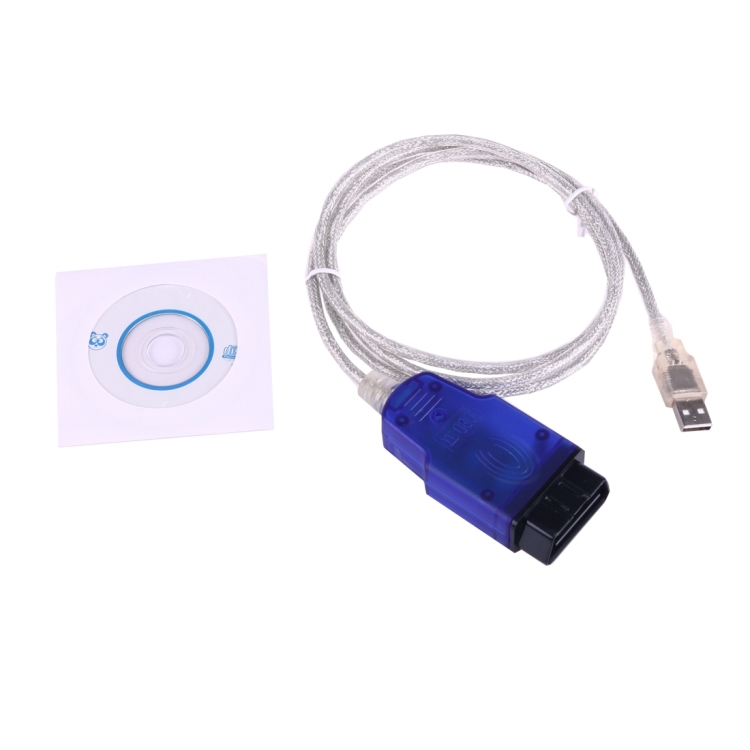

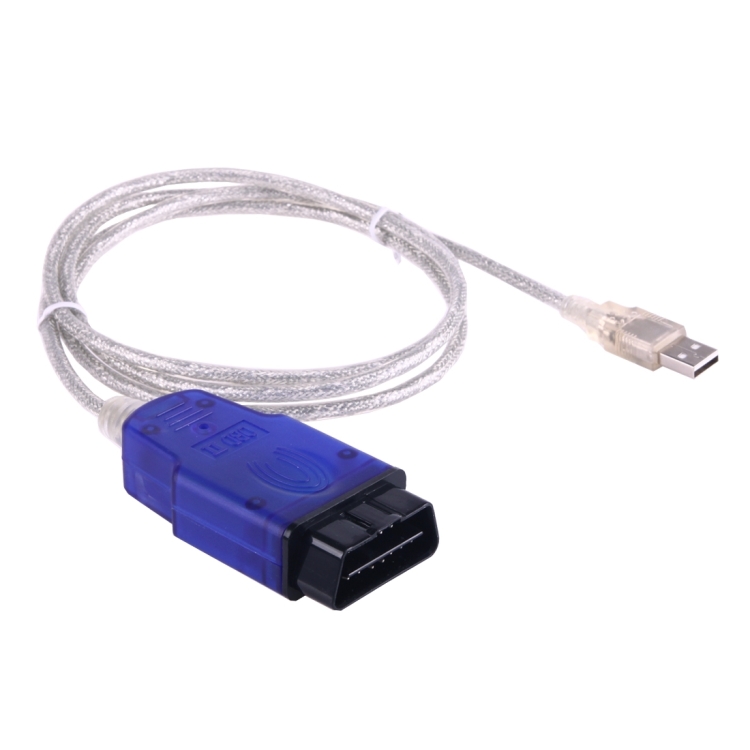

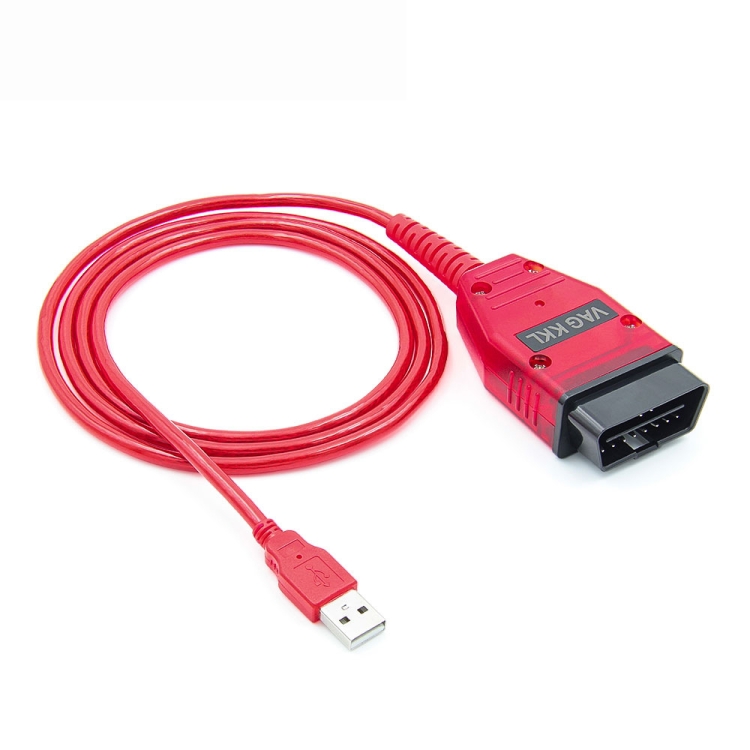

USB Cable KKL VAG-COM for VW / Audi 409.1

1. This diagnostic cable is usable for ISO9141 and KWP2000 transmission protocol like used for example by:
– For Volkswagen
– For Audi
– For Skoda
– For Seat
2. This cable cannot work if your car uses a protocol/bus system like VPW, PWM or CAN-bus.
3. Terminal K = Bus of communication
4. Terminal L = Ignition for waking up car computing system (ECU: Engine Control Unit)
5. Existed 3 different protocols with same OBD2 connector incl. ISO/KWP, VPW, PMW
6. This K/L Diagnostic interface & cables work on ISO/KWP (Key Word Protocol) launched after 1996 only.
7. Supported also ISO9141 protocol
8. The Cables may work with some versions of the Car soft, but car soft used a lot of different interfaces during the different versions and also had some custom interfaces.
