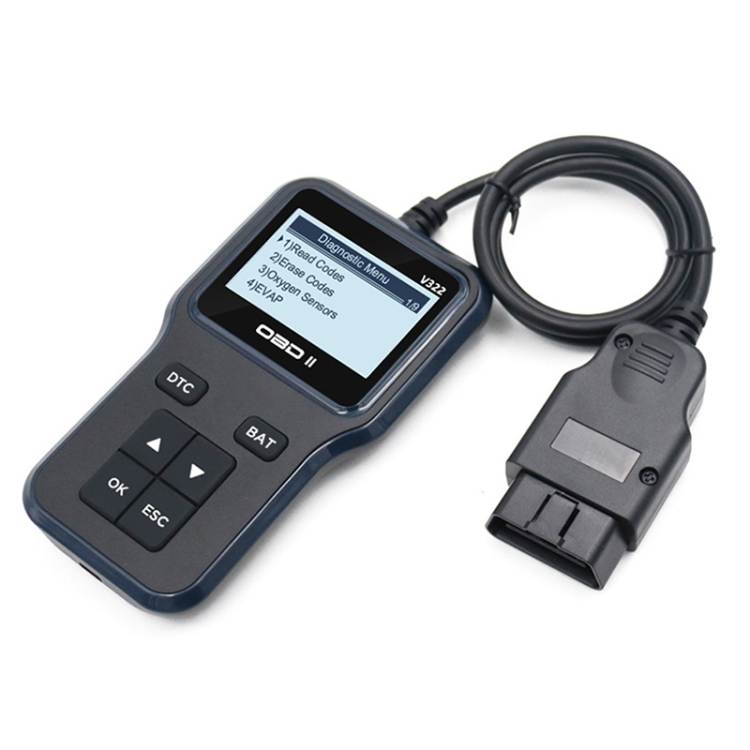

V322 Car OBD Handheld Code Reader Multilingual Fault Diagnosis Device
AED 167.14 AED 167.14
Estimated Delivery: 5 Feb – 11 Feb (3–7 working days)
Description

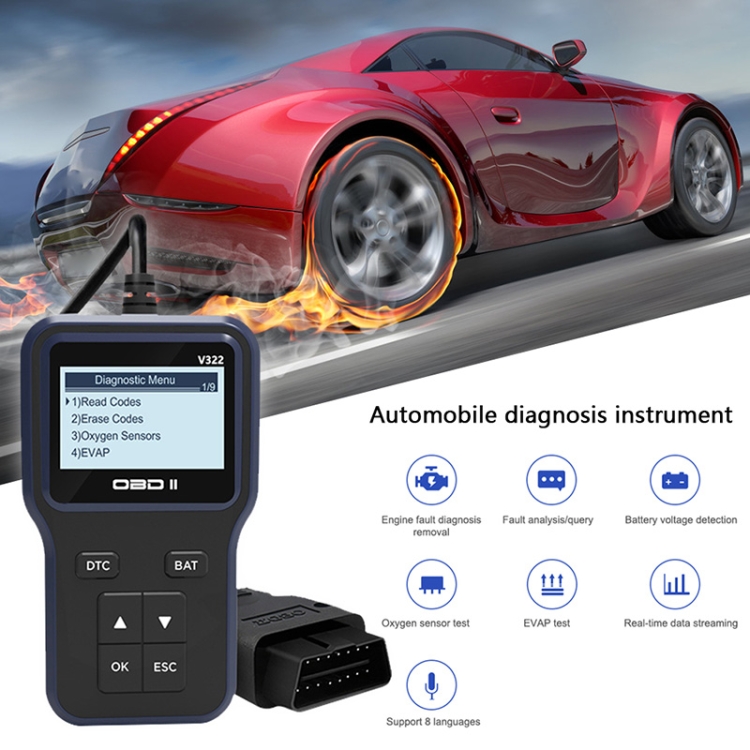

Features
1. Engine fault diagnosis/removal.
2. Fault analysis/query.
3. Battery voltage detection.
4. Sensor test.
5. EVAP test.
6. Support 8 languages: English, German, Dutch, Italian, Spanish, French, Russian, Chinese.
7. Working voltage: 9-16V
8. Screen display: 128 x 64px
9. Working temperature: 0-60 degrees Celsius
10. Storage temperature: -20~70 degrees Celsius
11. Dimensions: 152 x 87.5 x 22mm
12. Weight: 214g
Supported Protocol
1. SAE J1850 PWM (41.6 Kbaud)
2. SAE J1850 VPW (10.4 Kbaud)
3. ISO 9141-2 (5 baud init,10.4 Kbaud)
4. ISO 14230-4 KWP (5 baud init,10.4 Kbaud)
5. ISO 14230-4 KWP (fast init,10.4 Kbaud)
6. ISO 15765-4 CAN (11bit ID,500 Kbaud)
7. ISO 15765-4 CAN (29bit ID,500 Kbaud)
8. ISO 15765-4 CAN (11bit ID,250 Kbaud)
9. ISO 15765-4 CAN (29bit ID,250 Kbaud)

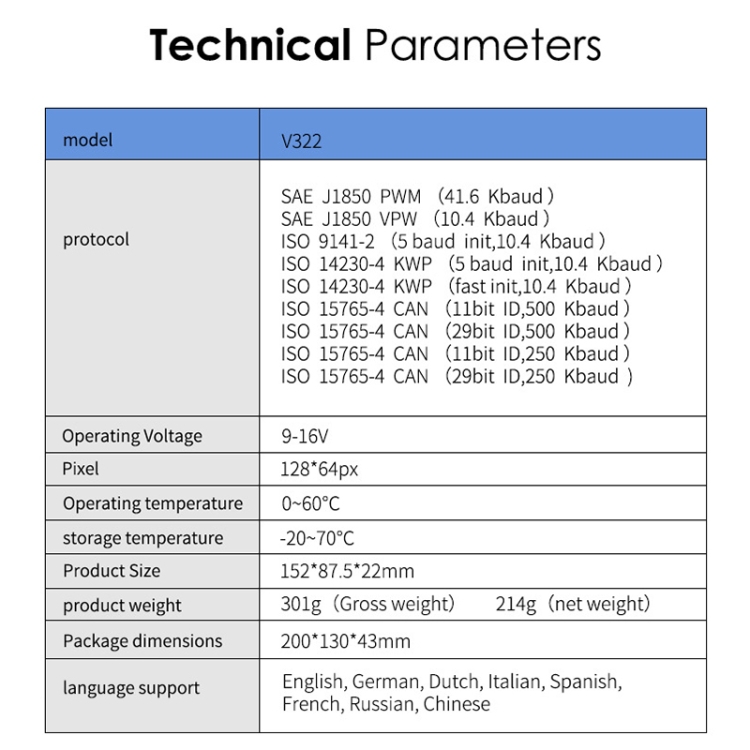

Specifications
Additional information
| Weight | 0.313 kg |
|---|---|
| Dimensions | 20.0 × 15.0 × 5.0 cm |
| Option | Scania VCI 3, V07HU, V08, UCDS PRO+, Viecar VP101, Vaninx IN101, BT201, V309, MS309 Pro, Vident iEasy310, V311, V317, V322, ELM327 Protocols, YAWOA YA401, VAG401, C500, Creator C502, V519, VS585, U600+ VAG CAN, AC619, V09H4-1, TIROL T16897, MT100, BT100Pro |
