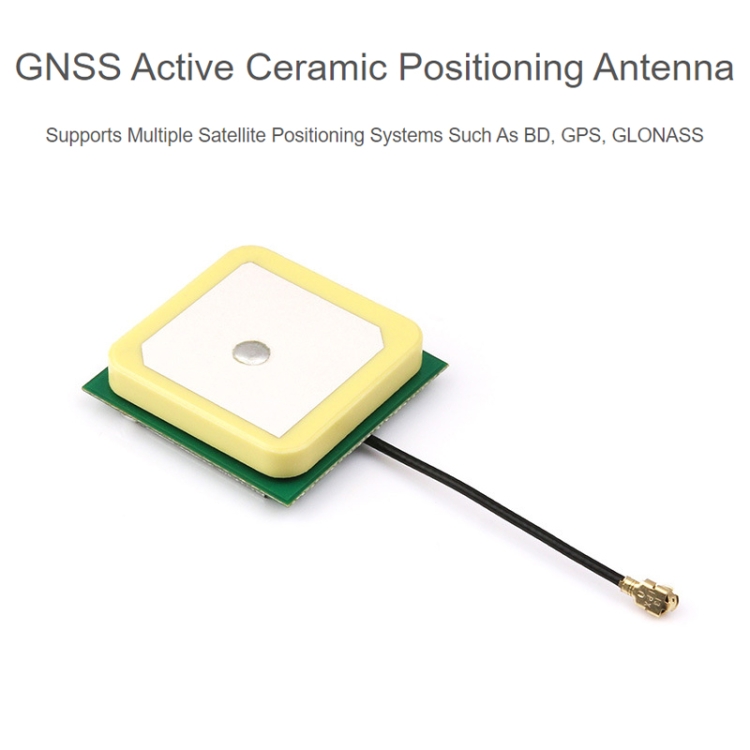

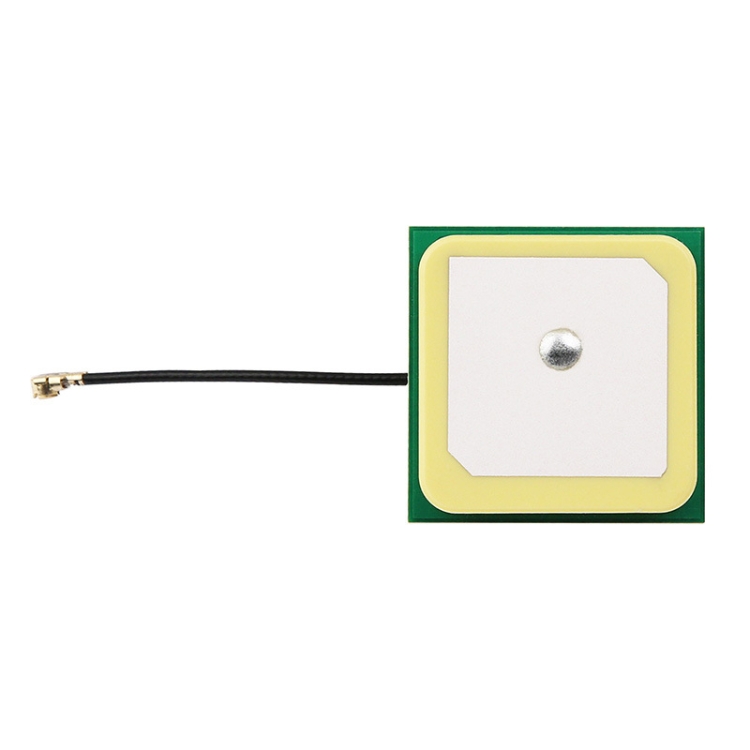

Waveshare 24095 GNSS Active Ceramic Positioning Antenna, IPEX 1 Connector
AED 76.41 AED 76.41
Description
1. GNSS active ceramic positioning antenna supports BD, GPS, GLONASS and other satellite positioning systems
2. Center frequency: 1575.42MHz, 1561MHz, 1602.56MHz
3. Output impedance: 50 ohms
4. Noise: less than or equal to 1.5 decibels
5. Plug: IPEX 1
6. Cable length: 35mm

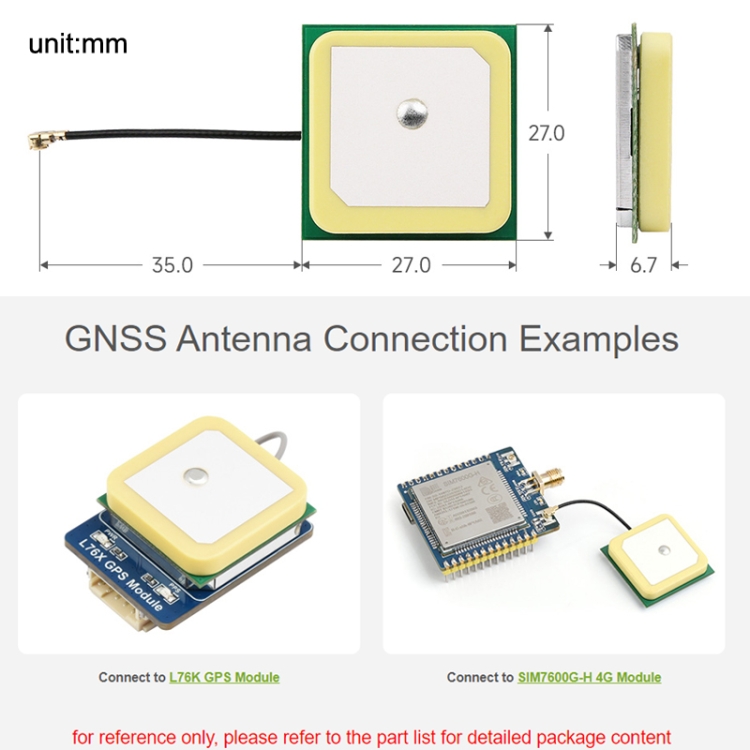

7. Ceramic size: 25 x 25mm
8. Current consumption: less than 10mA
9. Power supply: DC 3.3-5v
10. Operating temperature: -20 to 65 degrees Celsius
11. Input power: 50w
12. Axial ratio: 3dB
13. Radiation direction: omnidirectional
Specifications
Additional information
| Weight | 0.054 kg |
|---|---|
| Dimensions | 6.0 × 4.0 × 3.0 cm |
| Option | L76X Multi-GNSS, L76X, 24095, ZED-F9P, UPS, L76B |
