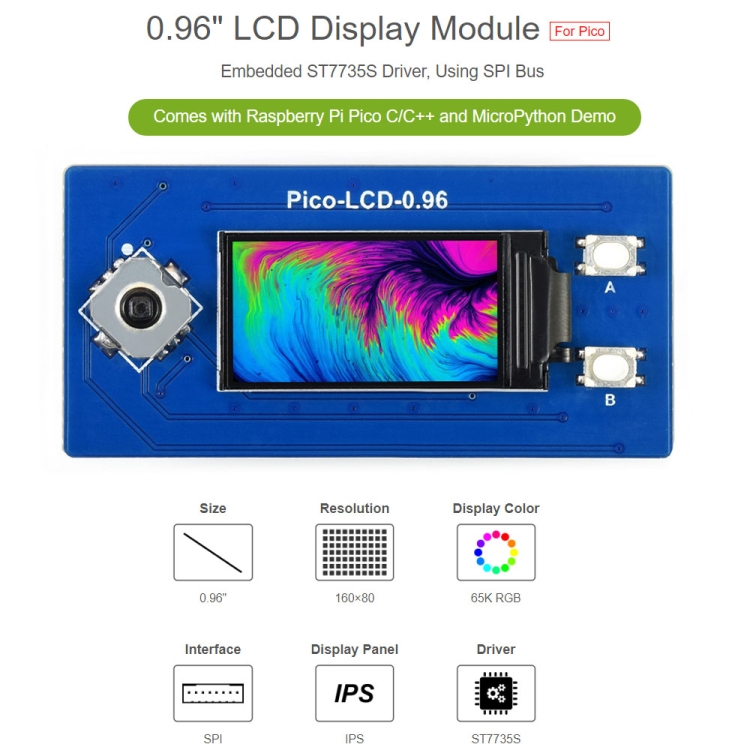

WAVESHARE 65K Colors 160 x 80 Pixel 0.96 inch LCD Display Module for Raspberry Pi Pico, SPI

AED 100.77 AED 100.77

In stock

AED 100.77 AED 100.77

Standard Delivery Timeframe: 3-7 Working Days

Description

1. 160×80 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
2. SPI interface, requires minimal IO pins
3. 1x joystick and 2x user buttons for easy interacting
4. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specification
1. Operating voltage: 2.6 ~ 5.5V
2. Resolution: 160×80 pixels
3. Display color: 65K RGB
4. Communication interface: 4-wire SPI
5. Display panel: IPS

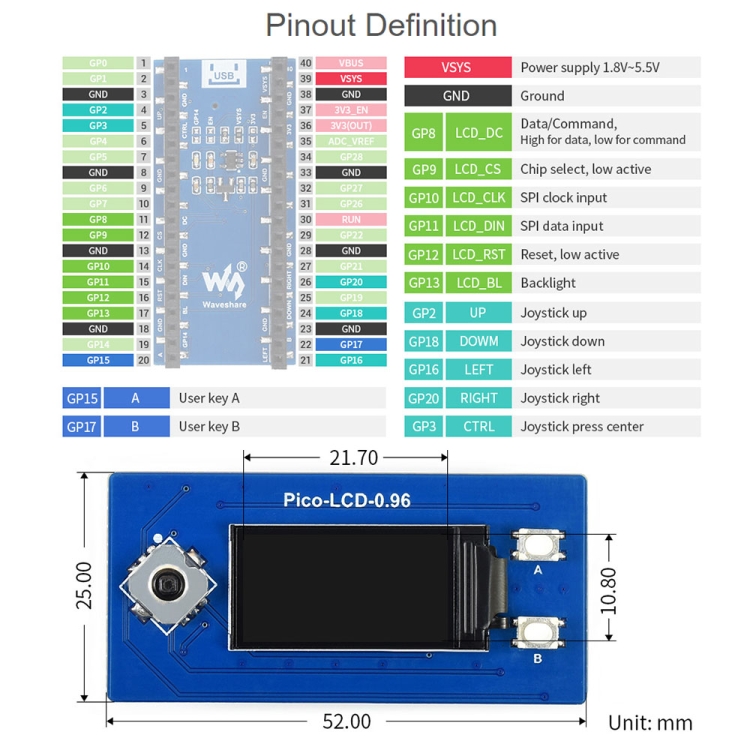

6. Display size: 21.70 x 10.80mm
7. Pixel size: 0.1356 x 0.135mm
8. Driver: ST7735S
9. Size: 52.00 x 25.00mm

Specifications

Additional information

Weight0.029 kg
Dimensions15.0 × 12.0 × 2.0 cm
