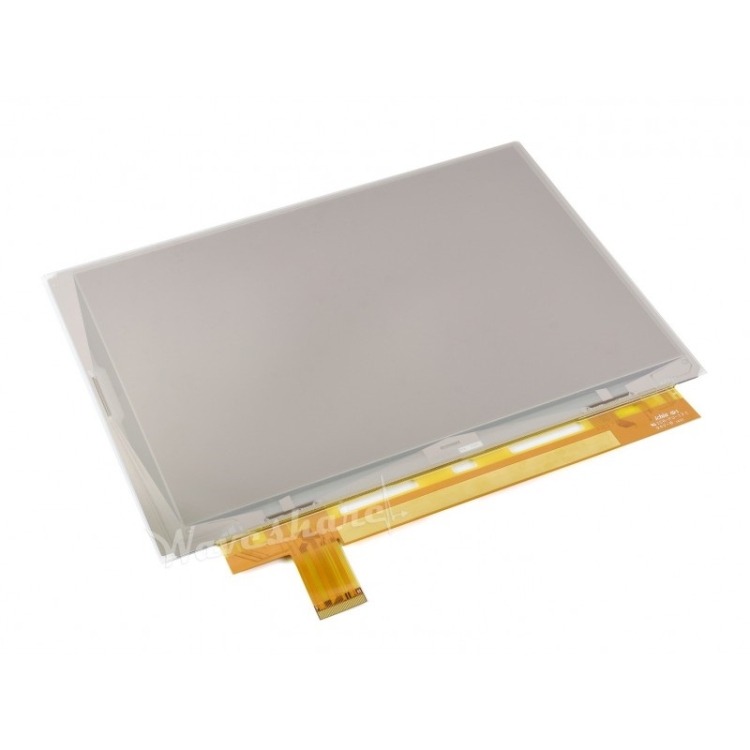

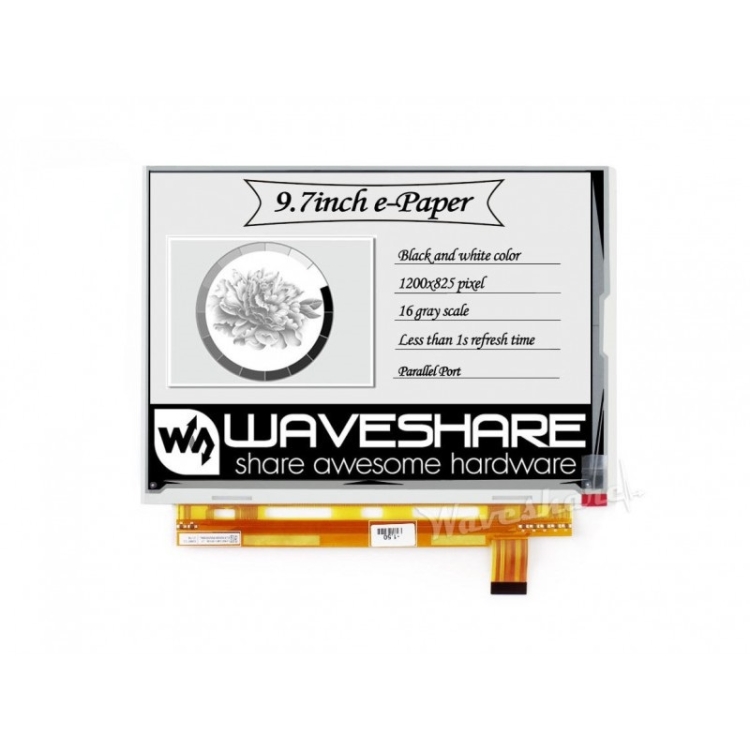

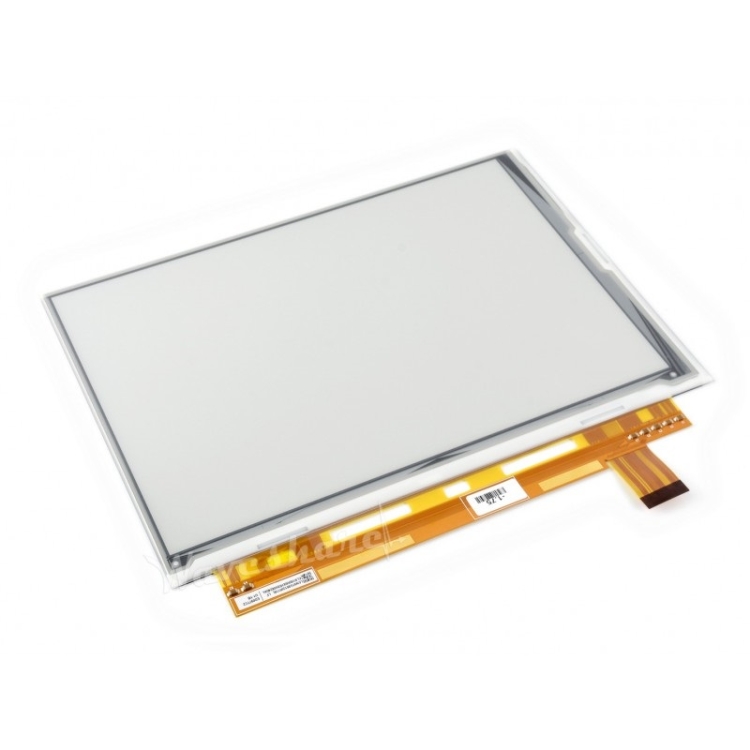

Waveshare 9.7 inch 1200×825 E-Ink Raw Display, Parallel Port, without PCB

Overview
1. This is an E-Ink raw display, 9.7inch, 1200×825 resolution, communicating via parallel port.
2. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features
1. No backlight, keeps displaying last content for a long time even when power down
2. Low power consumption, basically power is only required for refreshing
3. Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/STM32)

Specifications
1. Operating voltage: 5V
2. Interface: parallel port
3. Outline dimension: 218.8mm x 156.425mm x 1.15mm
4. Display size: 202.8mm x 139.425mm
5. Dot pitch: 0.169 x 0.169
6. Resolution: 1200 x 825
7. Display color: black, white
8. Gray scale: 2-16 (1-4 bit)
9. Full refresh time: <1s
10. Viewing angle: >170 degree
11. Weight: 0.09 kg
12. Note: This is a raw display, for easy testing and comparing, please consider the one with driver board: 9.7inch e-Paper HAT
