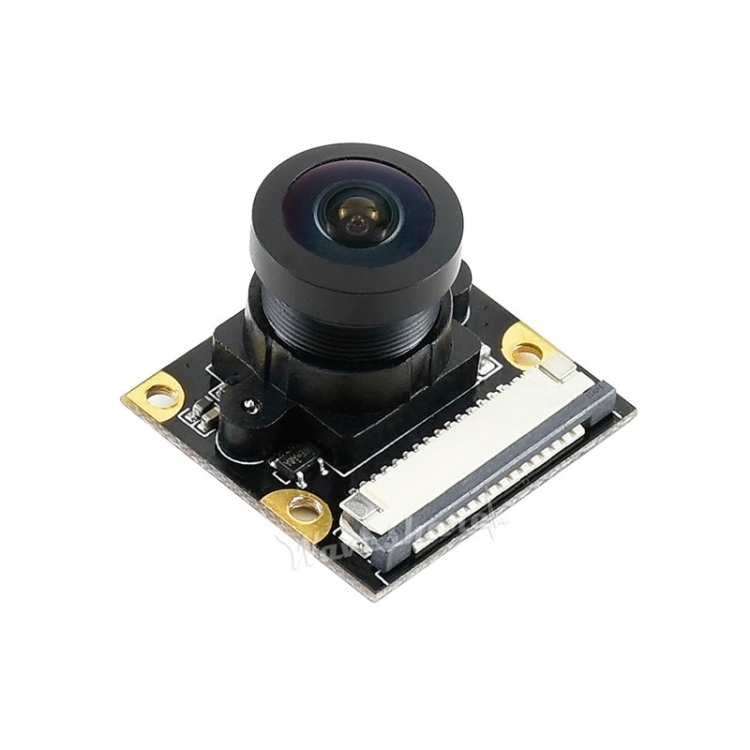

Waveshare IMX219-160IR 8MP 160 Degree FOV Infrared Camera, Applicable for Jetson Nano

AED 253.61 AED 253.61

In stock

AED 253.61 AED 253.61

Standard Delivery Timeframe: 3-7 Working Days

Description

Features
1. Supports NVIDIA Jetson Nano Developer Kit
2. Supports night vision when works with infrared LEDs
3. 8 Megapixels
4. Sensor: IMX219
5. Resolution: 3280 × 2464
6. Lens specifications:
– CMOS size: 1/4 inch
– Aperture (F): 2.35
– Focal Length: 3.15mm
– Angle of View (diagonal): 160 degree
– Distortion: <14.3%
7. 4 screw holes
8. Used for attachment
9. Provides 3.3V power output
10. Supports connecting infrared LED and/or fill flash LED
11. Dimension: 25mm x 24mm
12 . Weight: 31g

Packing List:
1. IMX219-160IR Camera x1
2. Infrared LED Board (B) 2PCS x1
3. 15-pin FFC (opposite sides contact) x1

Specifications

Additional information

Weight0.045 kg
Dimensions10.0 × 6.0 × 3.0 cm
