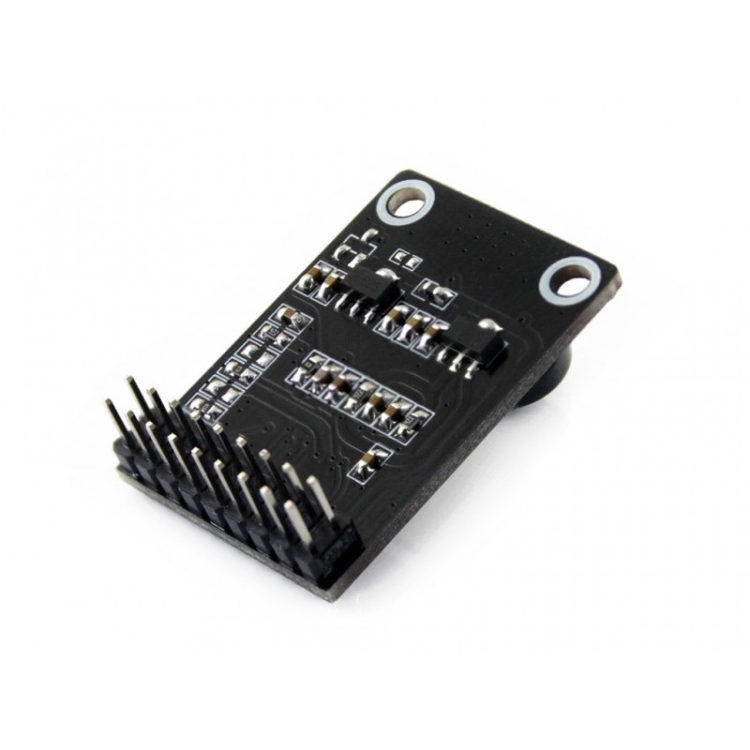

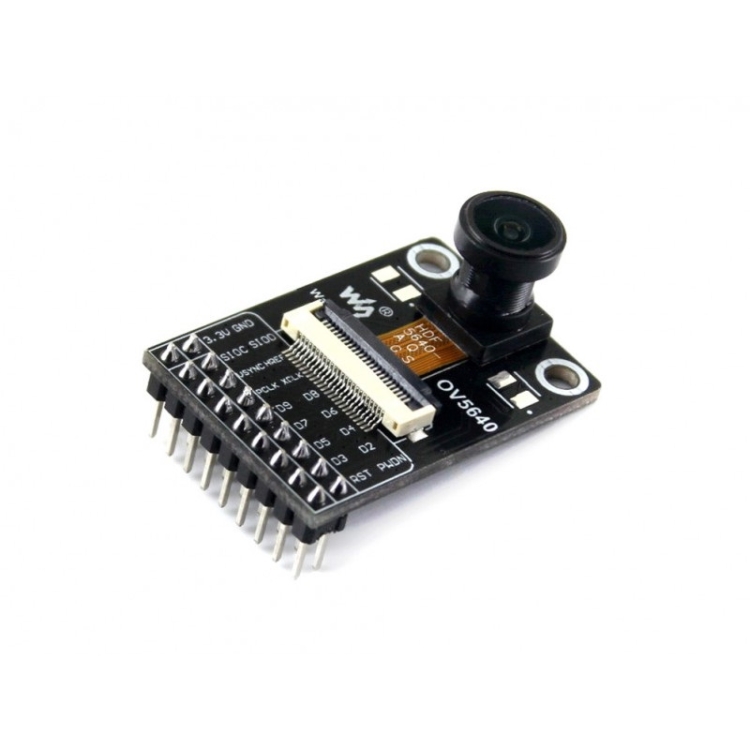

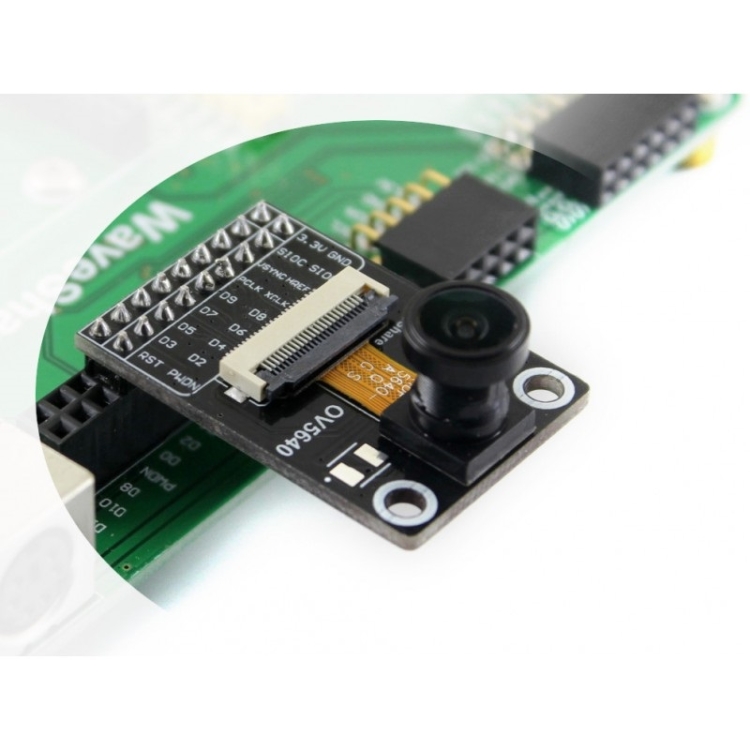

Waveshare OV5640 Camera Board (B), 5 Megapixel (2592×1944), Fisheye Lens Camera Module

Features
1. Pixels: 5 megapixel
2. Resolution: 2592×1944
3. Sensor: OV5640
– 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
– Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
– Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
– Supports image scaling, panning, windowing, etc.
4. Lens:
– CCD size: 1/4inch
– Aperture (F): 2.5
– Focal Length: 2.0mm
– Diagonal: 170 degree (fisheye)
5. Output Formats:
– YUV(422/420)/YCbCr422
– RGB565/555/444
– CCIR656
– RAW RGB
– Compressed Data
6. Operating Voltage: 3.3V
7. Control Interface: SCCB (I2C compatible)
8. Data Interface: DVP 8-bit
9. Dimension: 35.70mm x 23.90mm
