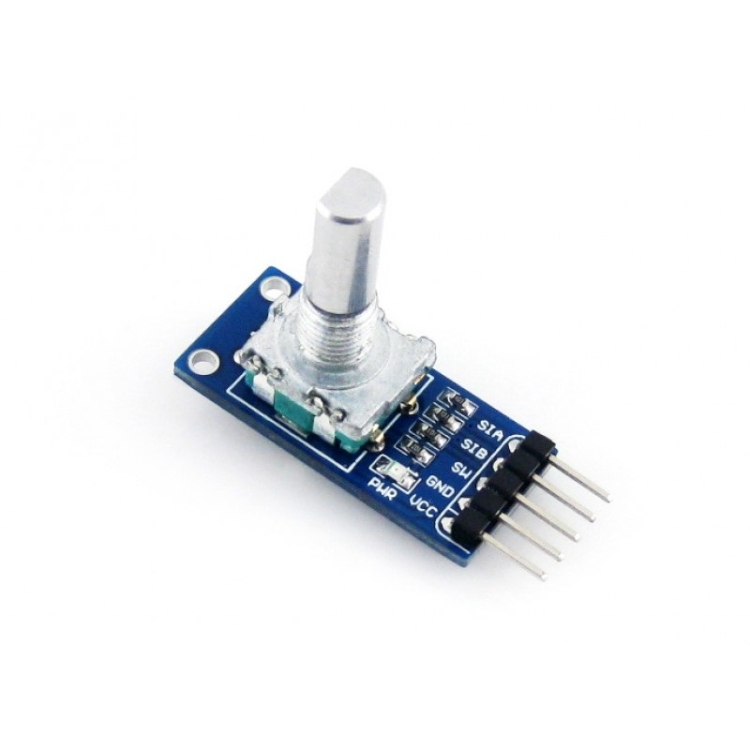

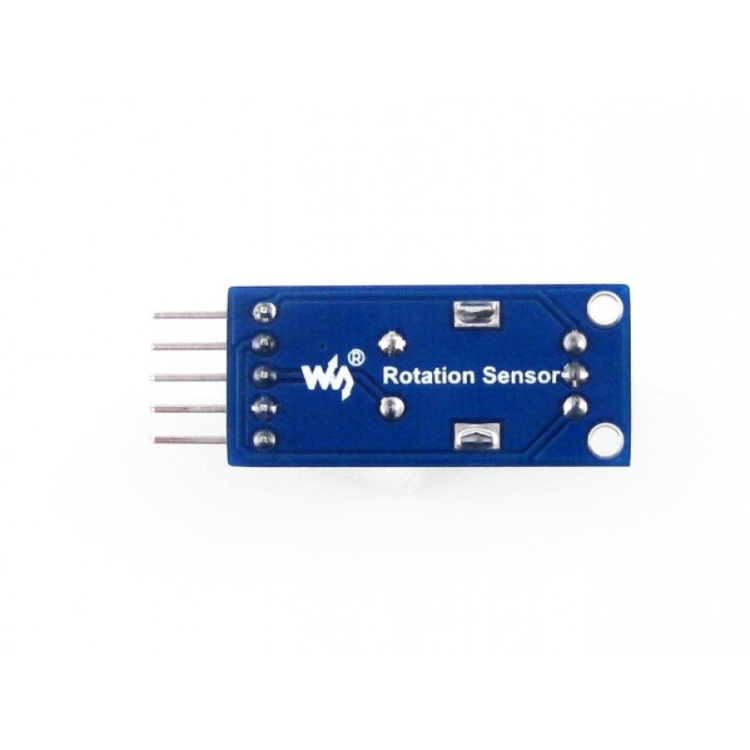

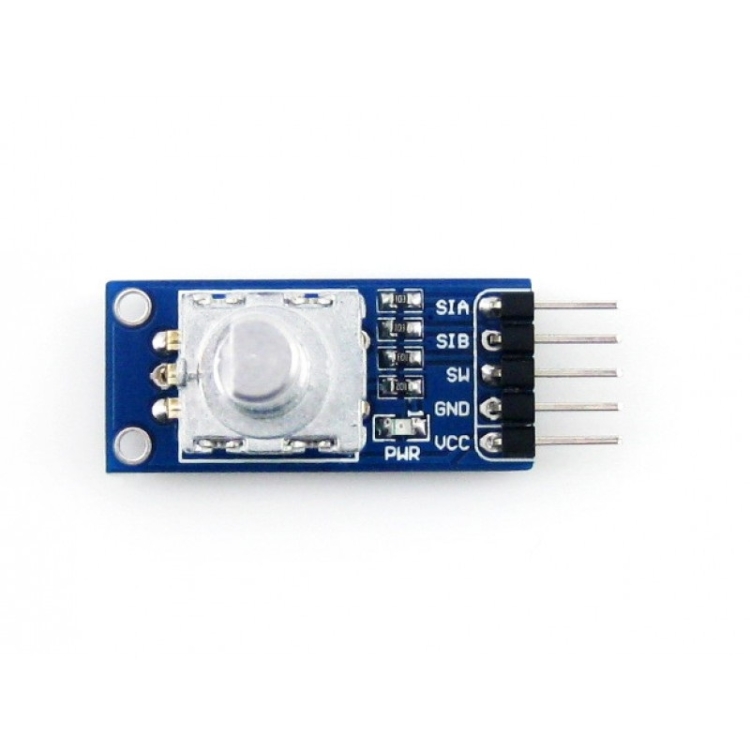

Waveshare Rotation Sensor
AED 77.85 AED 77.85
Description
Overview
Detects clockwise/anti-clockwise rotations: degrees and laps
Specifications
1. Pulses per lap: 15
2. Power: 3.0V ~ 5.3V
3. Dimension: 32.1mm * 15.4mm
4. Mounting holes size: 2.0mm
Applications
Positioning in Industrial Controls

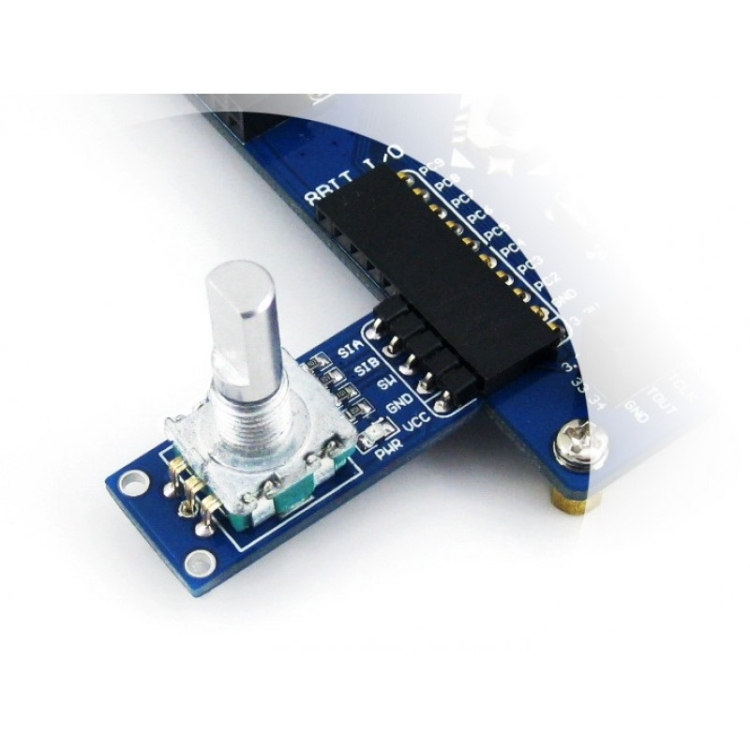

How to Use
In the case of working with a MCU:
1. VCC — 3.0V ~ 5.3V
2. GND — Power supply ground
3. SW — MCU.IO (encoder button status)
4. SIB — MCU.IO (output status)
5. SIA — MCU.IO (output status)
Specifications
Additional information
| Weight | 0.016 kg |
|---|---|
| Dimensions | 5.0 × 2.0 × 1.0 cm |
| Option | Environmental, DHT11, BMP388, Moisture, DHT22, Contact-less IR, Distance 4m, IR, Color, Distance 2m, Ultraviolet, Hall, Tilt, Pack, Rotation, Liquid |
