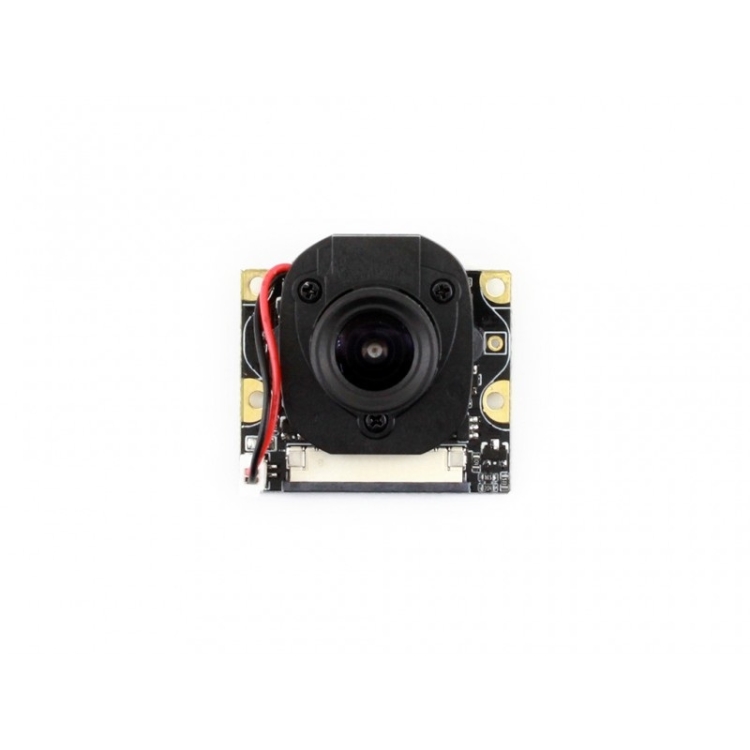

Waveshare RPi IR-CUT Camera Module, Support Night Vision, Better Image in Both Day and Night

AED 193.67 AED 193.67

In stock

Estimated Delivery: 5 Feb – 11 Feb (3–7 working days)

AED 193.67 AED 193.67

Description

Features

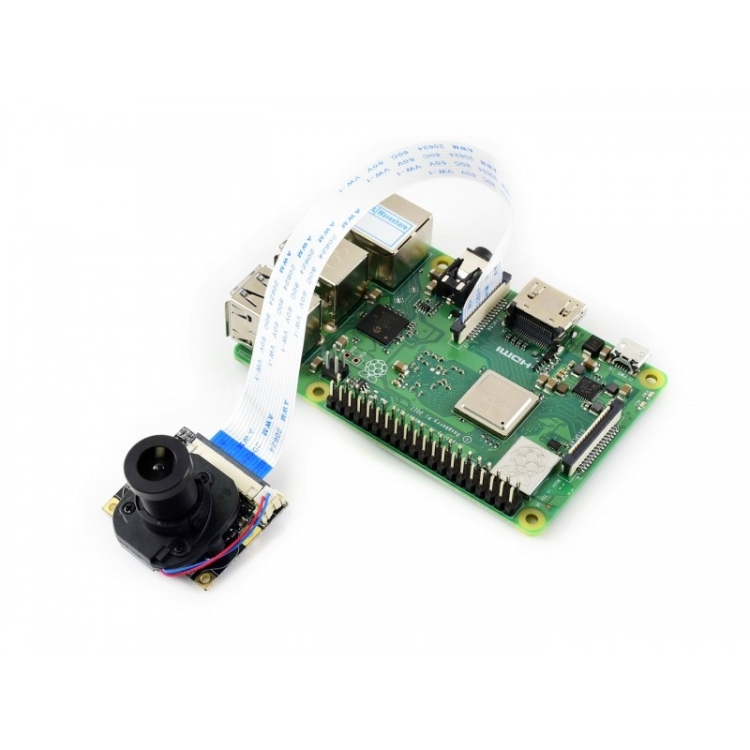

1. Raspberry Pi Camera, supports all revisions of Pi
2. Embedded detachable IR-CUT filter to eliminate color distortion in daylight
3. Equipped with infrared LED to support night vision
4. 5 million pixel OV5647 sensor
5. Adjustable focal length
6. Camera specifications
– CCD size: 1/4 inch
– Aperture (F): 1.8
– Focal length: 3.6mm
– Viewing angle (diagonal): 75.7 degrees
– Sensor best resolution: 1080p
7. 4 screw holes
– for accessories
– Provide 3.3V power output
– Support for connecting infrared LEDs and / or fill flash LEDs
8. Size: 31mm × 32mm

Note: To use the camera on Raspberry Pi Zero / Zero W / Zero WH, you need to purchase a specific line: Raspberry Pi Zero v1.3 camera line

Package Contents
1. RPi IR-CUT camera x1
2. Infrared LED board (B) x2
3. 15-pin FFC (relative side contact) x1

Specifications

Additional information

Weight0.025 kg
Dimensions6.0 × 5.0 × 2.0 cm
