Waveshare Smart Mobile Robot Chassis Kit

1. Rich open source demos, compatible with the general driver of Weixue Robot, can directly control a variety of peripheral modules
2. Modular structure, easy maintenance, this series design is easy to maintain and upgrade, eliminating the situation of replacing the whole unit due to damage or obsolescence
3. Low complexity, easy to use
4. Allows users to assemble and debug more easily, requiring less technical experience
5. Lightweight and high-strength, the mounting plate adopts a special structure to enhance strength and reduce weight
6. Double mounting plate structure, with mounting holes, suitable for most sizes, compatible with a variety of hardware, to meet different application scenarios and needs
7. Robotic Chassis-S Series Kit, Low Complexity Chassis with Flexible Assembly and Expansion Methods
8. Self-contained mounting plate, more flexible expansion
9. All-metal multi-layer structure, stable and durable, supports the installation of more modules
10. 1020 aluminum guide rails on both sides of the fuselage, used to expand other peripheral modules

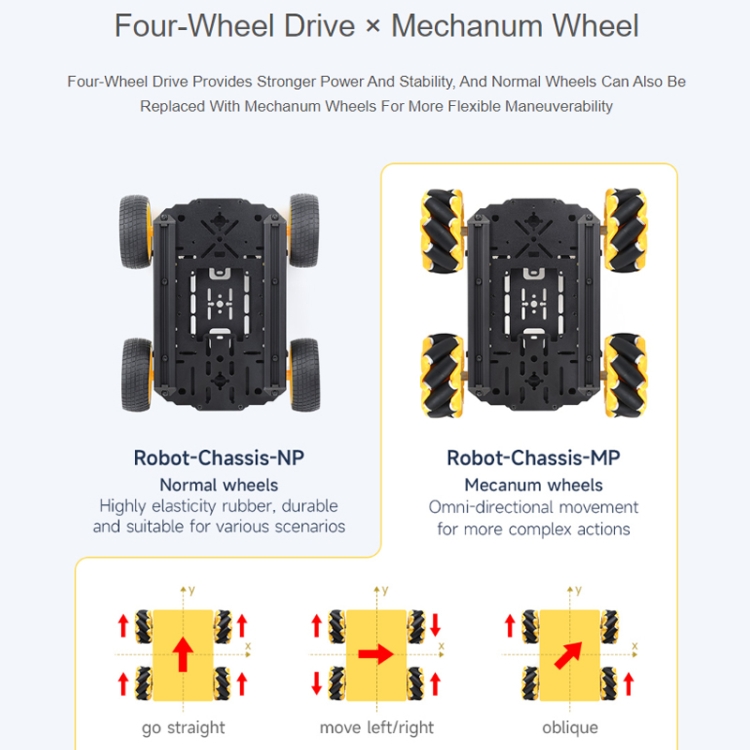

11. Four-wheel drive provides stronger power and stability, ordinary wheels can also be replaced with mechanical wheels, more flexible maneuverability

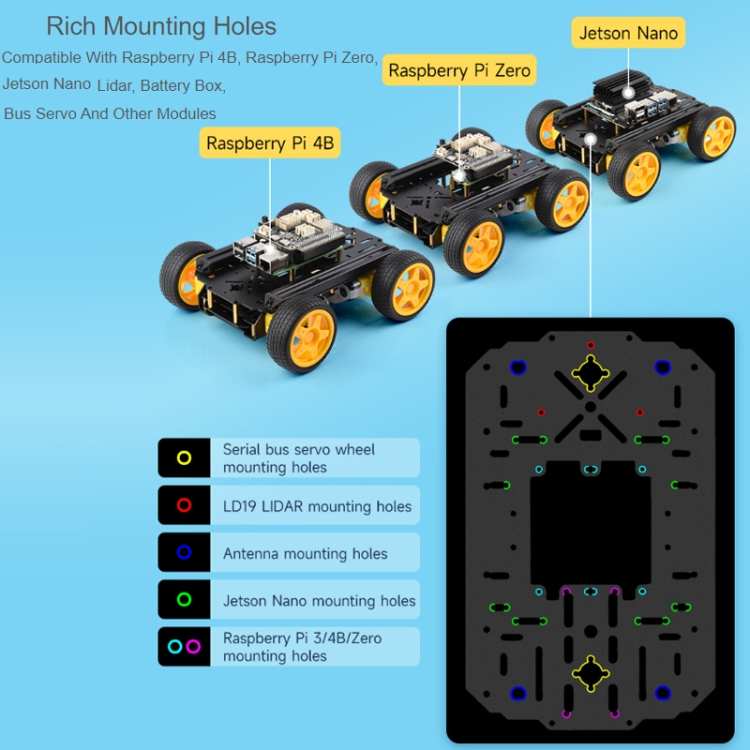

12. Abundant mounting holes, compatible with Raspberry Pi 4B, Raspberry Pi Zero, Jetson Nano, lidar, battery box, bus servo and other modules
13. Adopt a lightweight shock-absorbing structure, while ensuring good strength and reliability, improve the accuracy of IMU data, and solve the problem that the four wheels of a rigid chassis are difficult to land at the same time

Packing list:

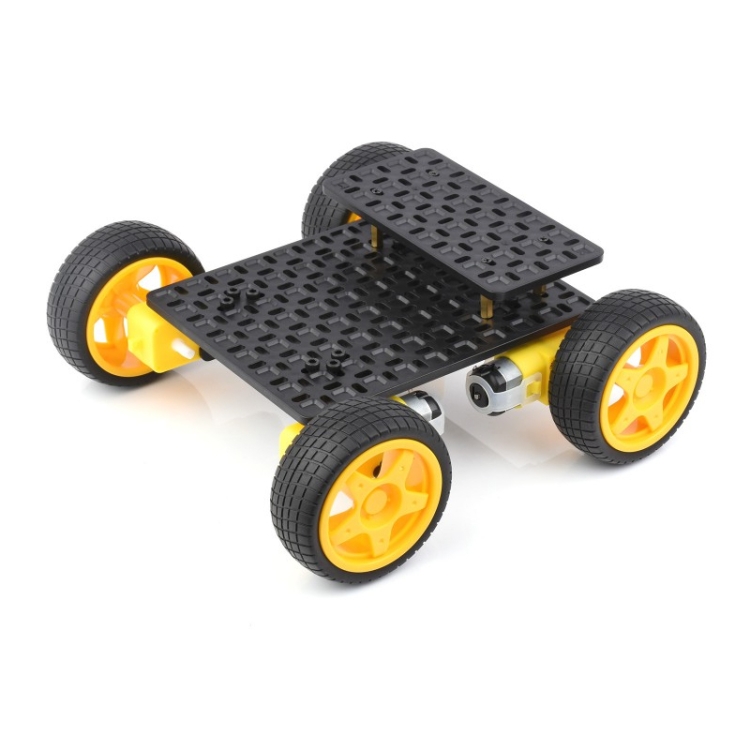

Robot chassis-NS
Wheels (4PCS) x 1
Mobile robot mounting plate (large size) x 1
Mobile robot mounting plate (medium size) x 1
TT motor (4PCS) x 1
TT motor bracket (4PCS) x 1
Mini cross wrench set x 1
Allen wrench x 1
screwdriver x 1
Screw bag x 1

Robot Chassis-MS
Mecanum wheel (L wheel 2PCS, R wheel 2PCS) x 1
Mobile robot mounting plate (large size) x 1
Mobile robot mounting plate (medium size) x 1
TT motor (4PCS) x 1
TT motor bracket (4PCS) x 1
Mini cross wrench set x 1
Allen wrench x 1
screwdriver x 1
Screw bag x 1

Robot Chassis-NP
Wheels (4PCS) x 1
Metal Chassis Kit × 1
Mobile robot mounting plate (medium size) x 1
TT motor (4PCS) x 1
Black Silicone Shock Absorbing Ball (11PCS) x 1
Mini cross wrench set x 1
Allen wrench x 1
screwdriver x 1
Screw bag x 1

Robot chassis-MP
Mecanum wheel (L wheel 2PCS, R wheel 2PCS) x 1
Metal Chassis Kit x 1
Mobile robot mounting plate (medium size) x 1
TT motor (4PCS) x 1
Black Silicone Shock Absorbing Ball (11PCS) x 1
Mini cross wrench set x 1
Allen wrench x 1
screwdriver x 1
Screw bag x 1
