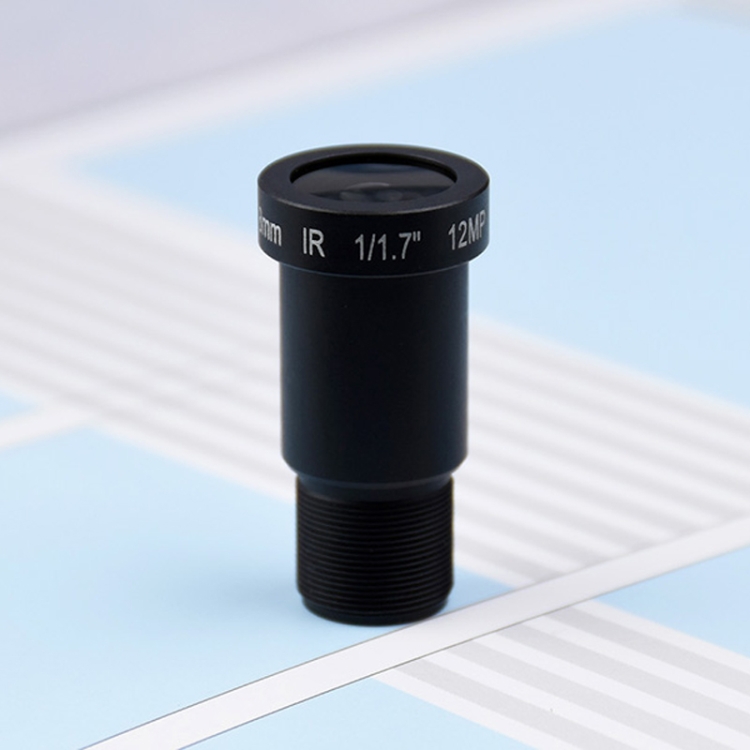

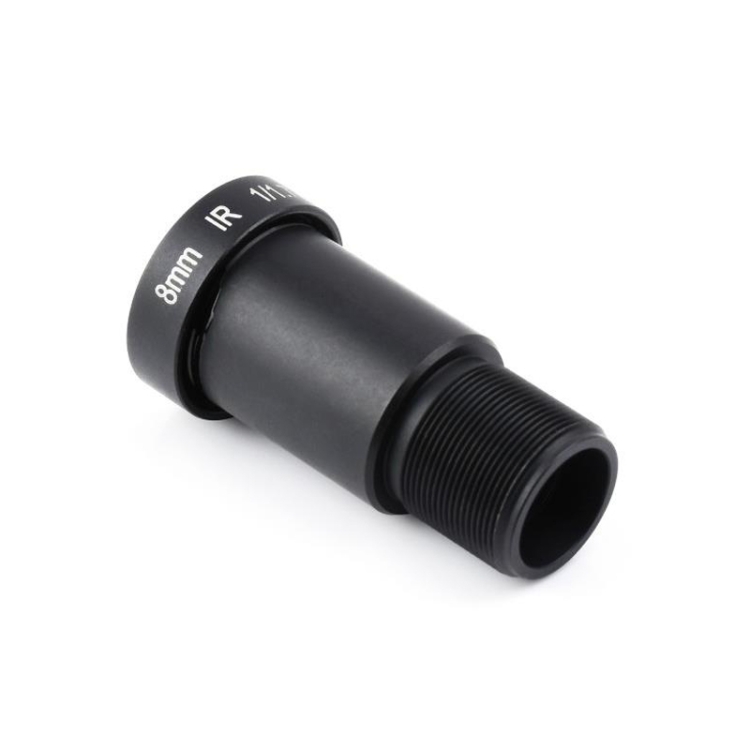

Waveshare WS0698012 For Raspberry Pi M12 High Resolution Lens, 12MP, 69.5 Degree FOV, 8mm Focal Length, 23968
Roll over image to zoom in
Click to open expanded view

Waveshare WS0698012 For Raspberry Pi M12 High Resolution Lens, 12MP, 69.5 Degree FOV, 8mm Focal Length, 23968

    AED 211.65 AED 211.65

    In stock

    SKU: TBD01283838 Category: Tags: , , ,

    AED 211.65 AED 211.65

    Standard Delivery Timeframe: 3-7 Working Days

    Description

    1. For Raspberry Pi M12 camera
    2. Resolution: 12MP
    3. Focal length: 8mm
    4. Aperture (F/NO): 1.8

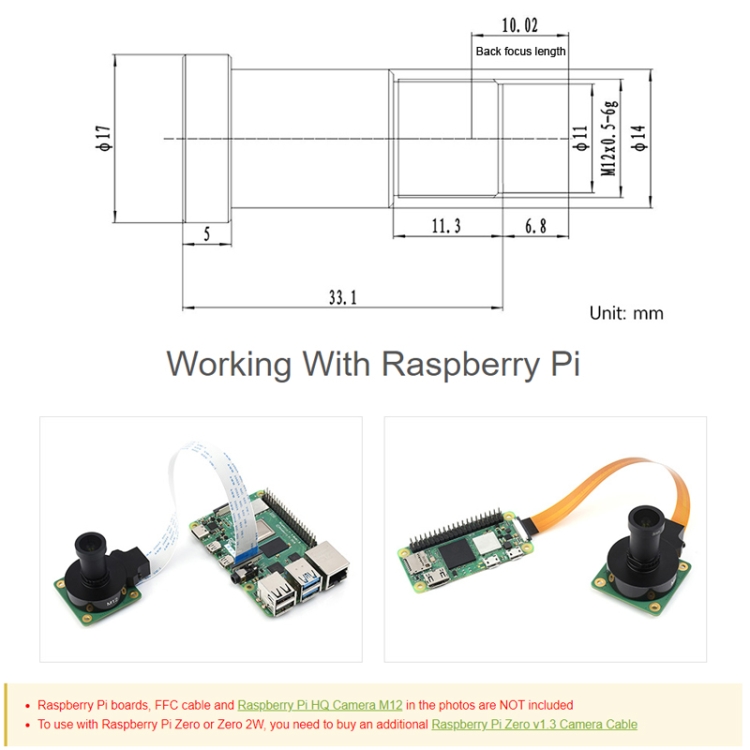

    5. Back focus length: 10.02mm
    6. Distortion: less than -15.68%

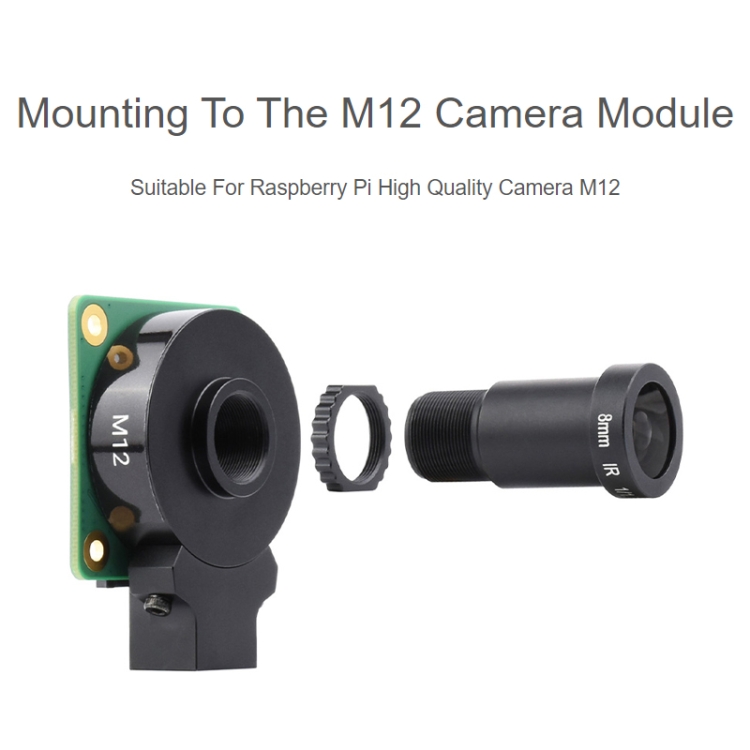

    7. Mounting: M12 x P0.5
    8. Construction: 8G+IR
    9. Field of view:
    – Image format: 1/1.8 inch
    – Diagonal: 69.5 degrees
    – Horizontal: 55.6 degrees
    – Vertical: 40.3 degrees
    10. Weight: about 12g

    Specifications

    Additional information

    Weight0.024 kg
    Dimensions8.0 × 4.0 × 1.0 cm
    Option

    23964, 23965, 23966, 23967, 23968, 24054
