WAVLINK WN675X2M 2.4GHz/5GHz Dual Band WiFi 6 AX3000 M.2 Module BT5.2 Network Card

1.Intel Wi-Fi 6 technology: This network card uses the Intel WiFi 6 AX200 chip and supports the latest 802.11ax technologies, such as OFDMA, 1024QAM, Target Wakeup Time (TWT), providing a peak data rate of up to 2.4Gbps in the range of 80MHz to 160MHz, with nearly three and four times the capacity compared to 802.11ac.

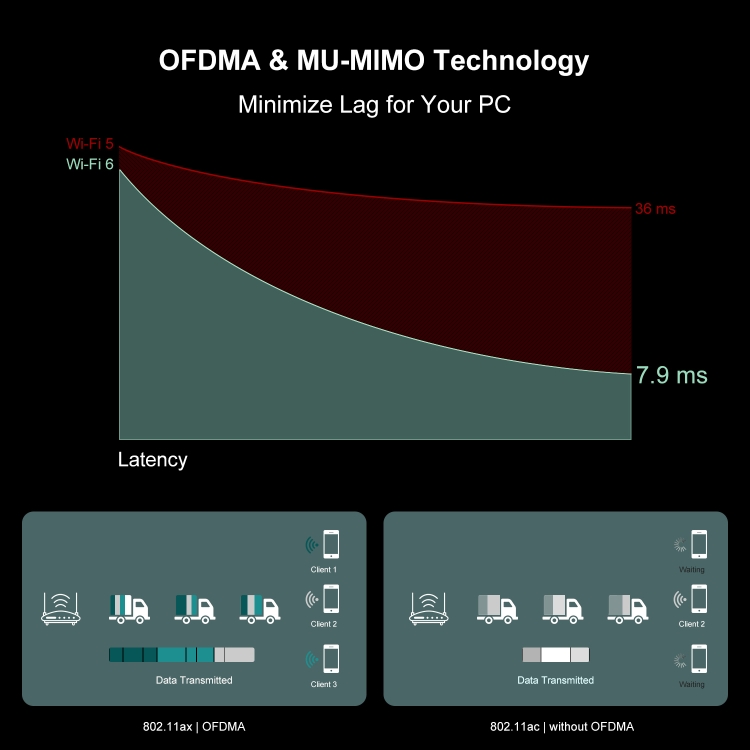

2.OFDMA ultra fast speed: The combination of MU-MIMO architecture and OFDMA technology ensures better stability and high-speed performance for your computer even in congested networks with multiple devices.
3.Bluetooth 5.2: The coverage range of Bluetooth 5.2 is four times that of Bluetooth 4.2, with double transmission speed and faster transmission speed, thereby reducing overall power consumption
4.Advanced encryption: With advanced WPA3 encryption, it can protect your network from hackers and malicious software
5.Compatibility: Perfect for replacing old WiFi 5 or WiFi 4 based wireless modules, such as AC9260/AC8260/AC7265 with M.2 interface. Most suitable for laptops or desktops equipped with Intel CPUs and some newer AMD CPUs running Windows 10 64 bit (requiring driver installation through a website), such as Lenovo, HP, Dell, ASUS laptops. Lenovo T-series laptops have whitelist restrictions and are mostly incompatible

Specification:
1.Product model: WN675X2M(AX200NGW)

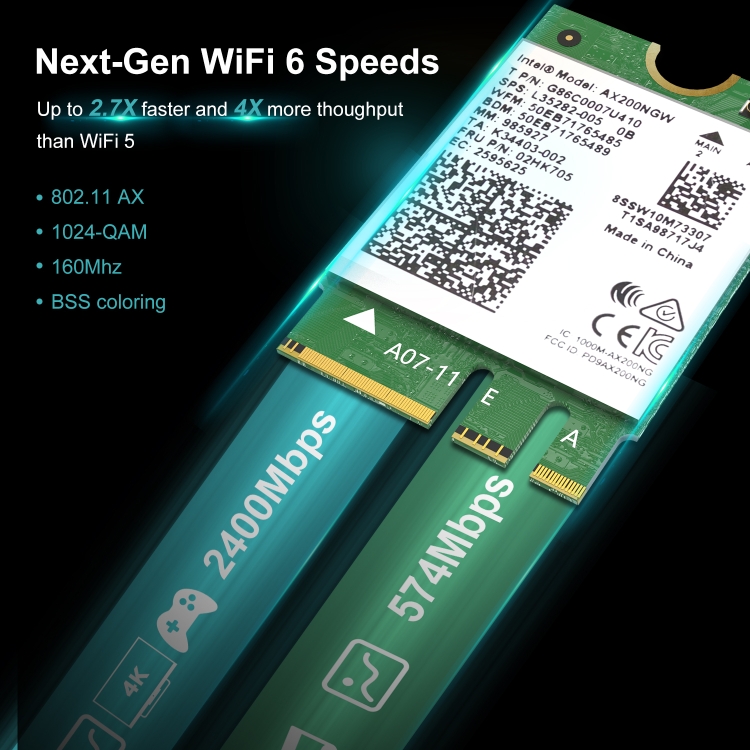

2.Transmission rate: 2.4GHz: 574Mbps; 5GHz: 2400Mbps
3.Protocol standards: Supports IEEE 802.11AX/AC, IEEE 802.11a/b/g/n
4.WiFi frequency: 2.412GHz -2.4835GHz 5.150GHz -5.825GHz
5.Technical support: MU-MIMO, OFDMA, BSS Coloring, 1024QAM, Target Wakeup Time (TWT)
6.Transmission power: 20dBM

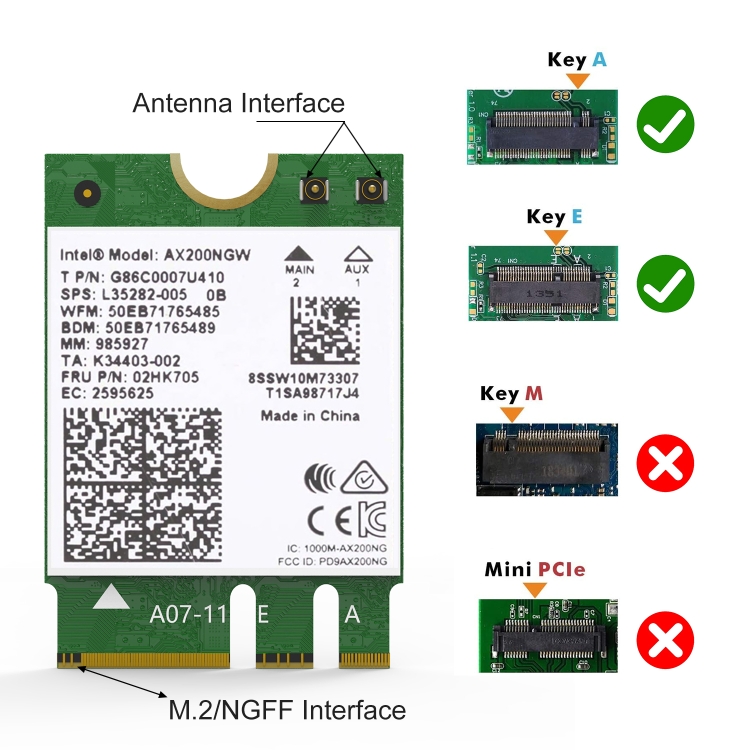

7.Bus interface: M.2/NG FF

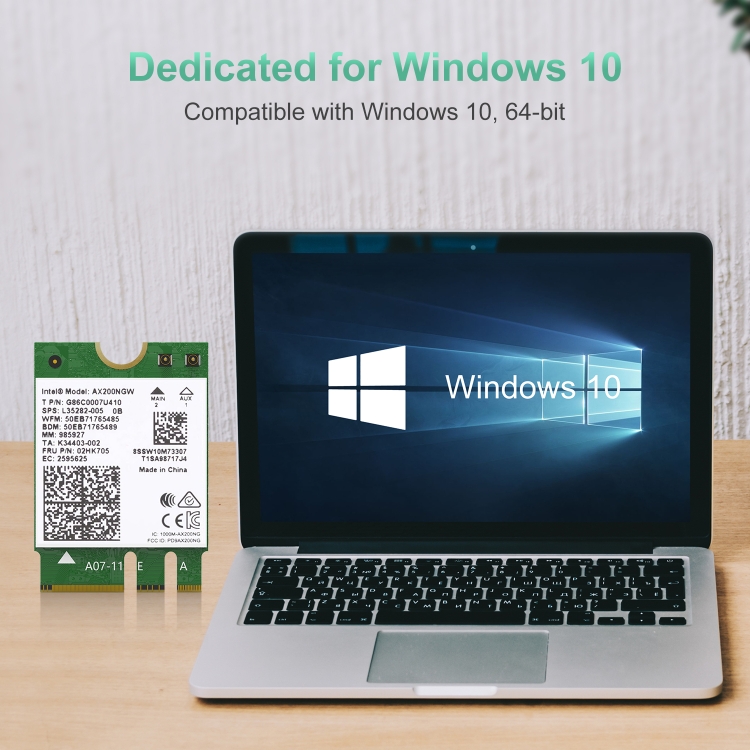

8.Support systems: Win 10 64-bit, Linux
9.Bluetooth version: Bluetooth 5.2
10.Encryption mechanism: WPA/WPA2/WPA3, WPA PSK/WPA2 PSK
