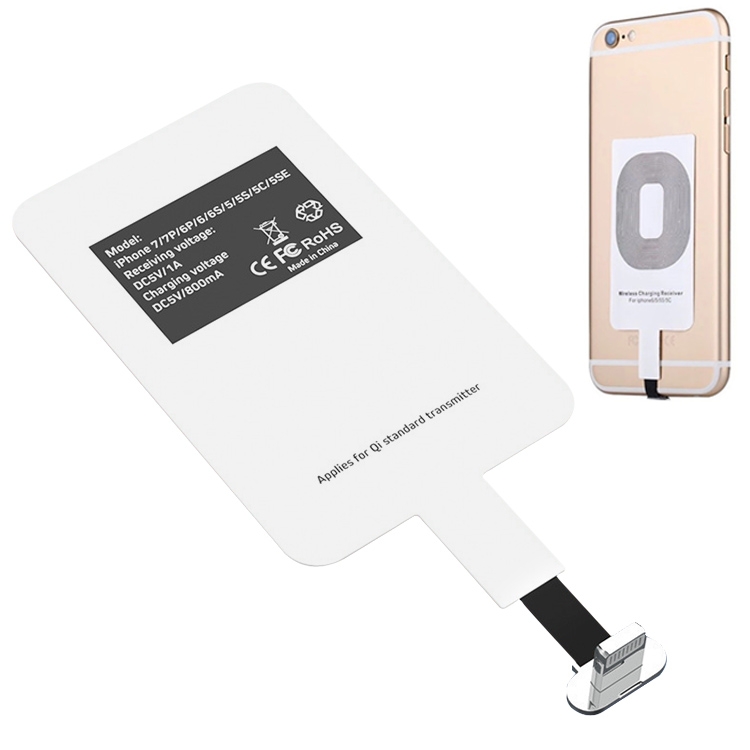

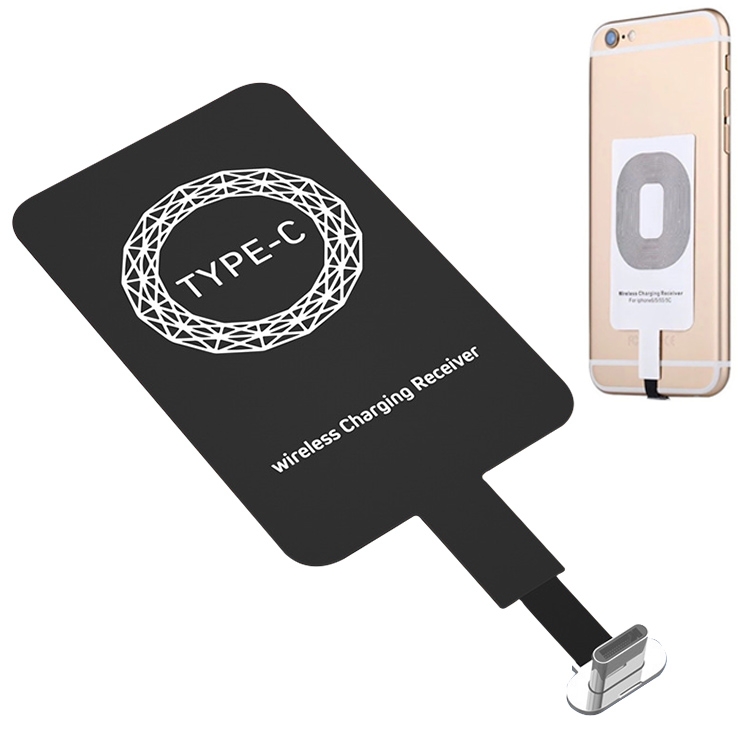

Wireless Charging Receiver Mobile Phone Charging Induction Coil Patch

Domestic parameters:
1. Product model: suitable for iphone5 5s 5c-01, iphone6, iphone6 ​​plus
2. Main function: wireless charging receiver
3. Standard version: WPC-1.1
4. Product application: all wireless charging equipment that meets QI standards
5. Charging type: one-to-one charging in the corresponding area
6. Receiving voltage: DC 5V 1.5A
7. Receiving distance: 2-6mm
8. Charging current: 500-1000mA
9. Transmitting power: 5W
10. Working frequency: 100-200KHz
11. Power conversion: greater than 75 precent
12. Charging method: induction mode
13. Dimensions: 67x34x1.0 mm
14. Product weight: about 5 grams

TI program parameters:
1. Using TI smart chip, the use process is stable and efficient, and the heat is small
2. Support 1A current transmission, which is more than 20 precent faster than ordinary chip charging speed
3. The metal joints are made with precision craftsmanship, which is stronger and more durable, and the transmission performance is more stable.
4. Plastic sheet, more wear-resistant than ordinary stickers, more waterproof and stain-proof

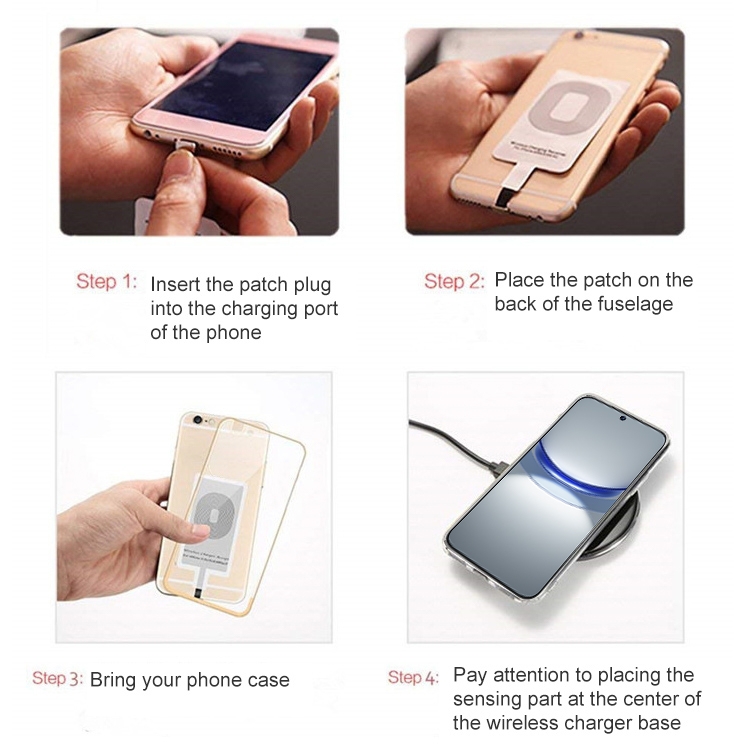

5. Simple and universal, wireless charging can be realized by plugging directly into the charging port
6. Product application: all wireless charging equipment that meets QI standards
7. Charging type: one-to-one charging in the corresponding area
8. Receiving voltage: DC 5V 1.5A
9. Charging current: 500-1000mA
10. Transmitting power: 5W
11. Working frequency: 100-200KHz
12. Receiving distance: 2-6mm
13. Power conversion: greater than 75 precent
14. Charging method: induction mode
15. Dimensions: 47×104 mm
16. Weight: about 9 grams
17. Executive standard: QI wireless charging standard
18. Warm reminder: This receiver needs to have a standard QI/1.0 1.1 wireless transmitter to work with
