Name: ACEMAGIC F2A AMD Ryzen AI 9 HX 470 Mini PC 32GB LPDDR5X + 1TB SSD
Brand: ACEMAGIC
SKU: ACEMAGIC-F2A
Price: 8599.00 AED
Availability: InStock

Description

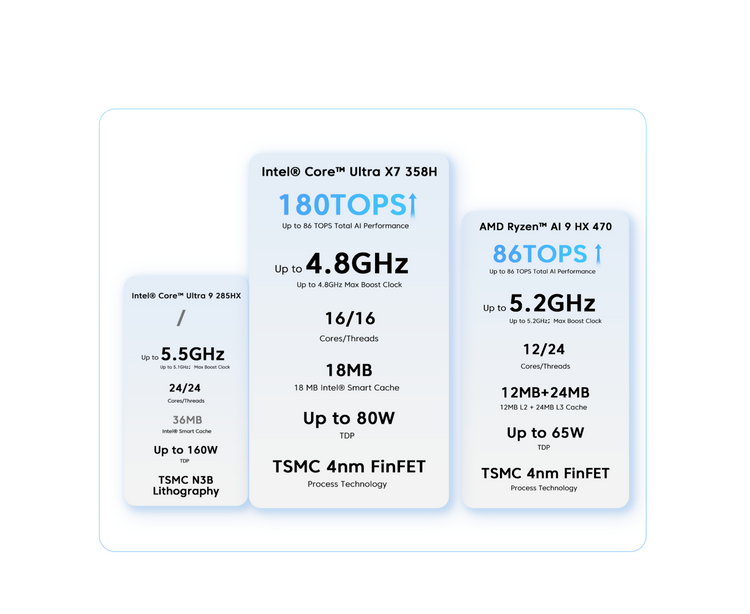

Choose the CPU that fits your workflow

Next-generation heterogeneous CPU platform for AI PCs.

Al Flagship for Every Scenario

Specification

Intel® Core™ Ultra X7 358HAMD Ryzen AI9 HX 470

Processor

CPUIntel® Core™ Ultra X7 358H(Panther Lake)，16 cores (4P + 8E + 4 LP-E), 16 threads
Intel 18A process, base frequency 1.9GHz, max turbo up to 4.8GHz
18MB Smart Cache, NPU up to 50 TOPS
total platform AI performance up to 180 TOPS
GPUIntel Arc B390 Graphics
Xe3 architecture, 12 Xe-Cores, max frequency up to 2.5GHz, up to 122 TOPS AI compute, DirectX 12 Ultimate, Ray Tracing support, XeSS support, AV1 / H.265 / H.264 encode and decode, up to 8K output, up to 4 displays
NPUIntel® AI Boost NPU（NPU 5 Architecture）
Up to 50 TOPS NPU AI performance
Total AI Performance (CPU+GPU+NPU): Up to 180 TOPS

Memory & Storage

Memory32GB LPDDR5X 7500MT/s (onboard, non-upgradable)
Storage1× M.2 2280 NVMe PCIe 4.0×4 SSD (1TB pre-installed)
2× M.2 2280 NVMe slots (1× PCIe 4.0×4, 1× PCIe 5.0×4)
Up to 2TB per slot, maximum total 4TB

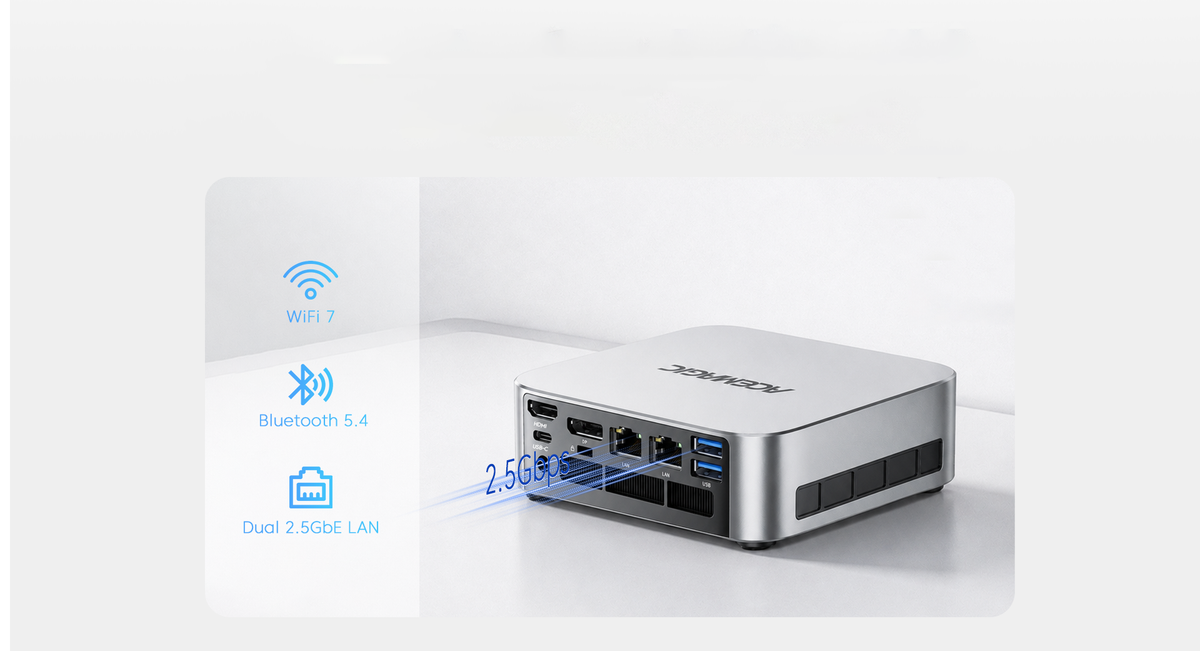

Wireless Connectivity

WiFiWiFi 7
BluetoothBluetooth 5.4
LANDual 2.5Gbps LAN

Output

Video1× HDMI 2.1 TMDS (4K@60Hz)
1× DP 2.1 (8K@60Hz)
USB4 Type-C [Supports DP 1.4 display + supports USB4 transfer protocol (40 Gbps) + supports PD 100 W input and 15 W output]
Full-featured Type-C [Supports DP 1.4 display + supports PD 100 W input + supports USB 3.2 Gen 2 transfer protocol (10 Gbps)]
Audio1× 3.5mm audio jack

Ports & Buttons

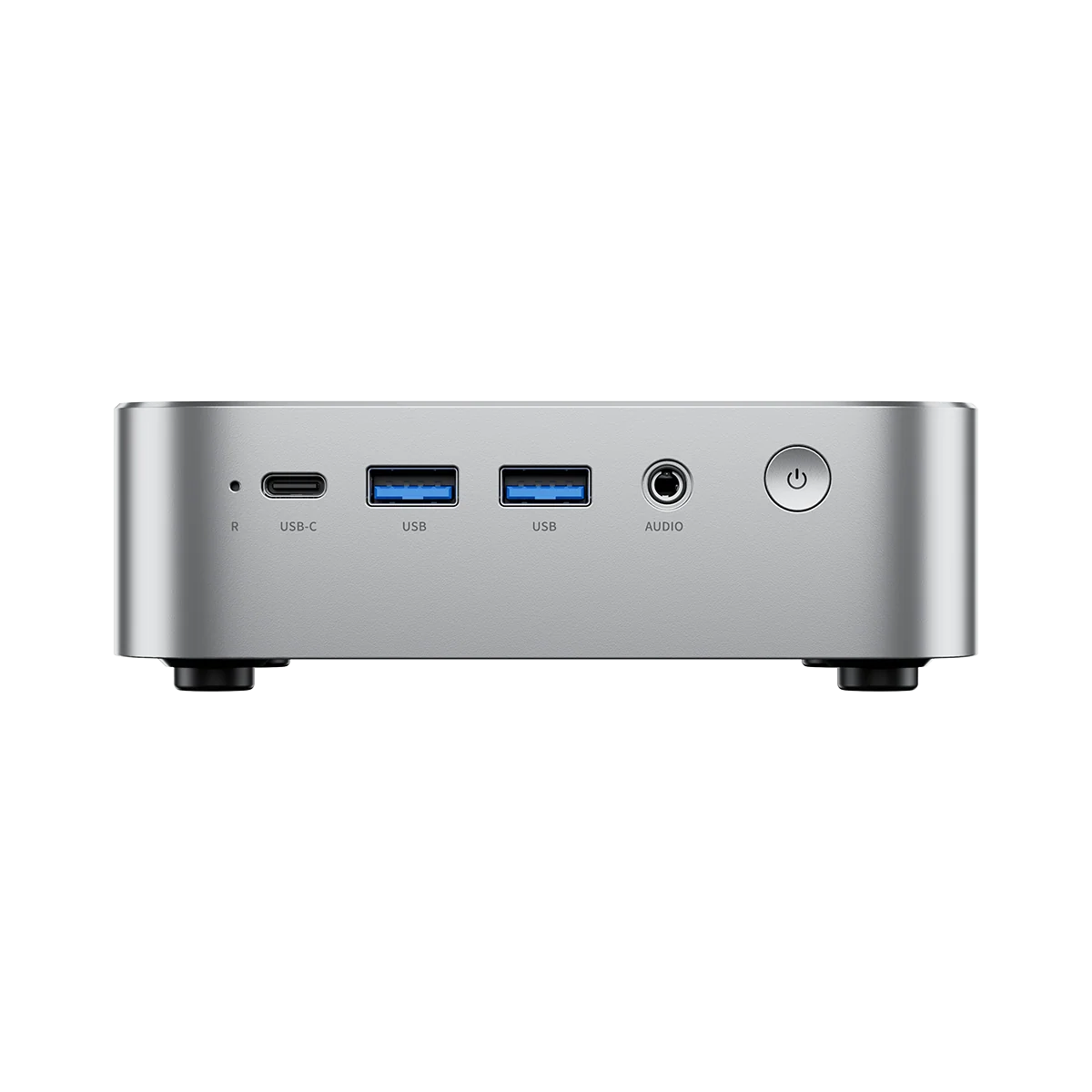

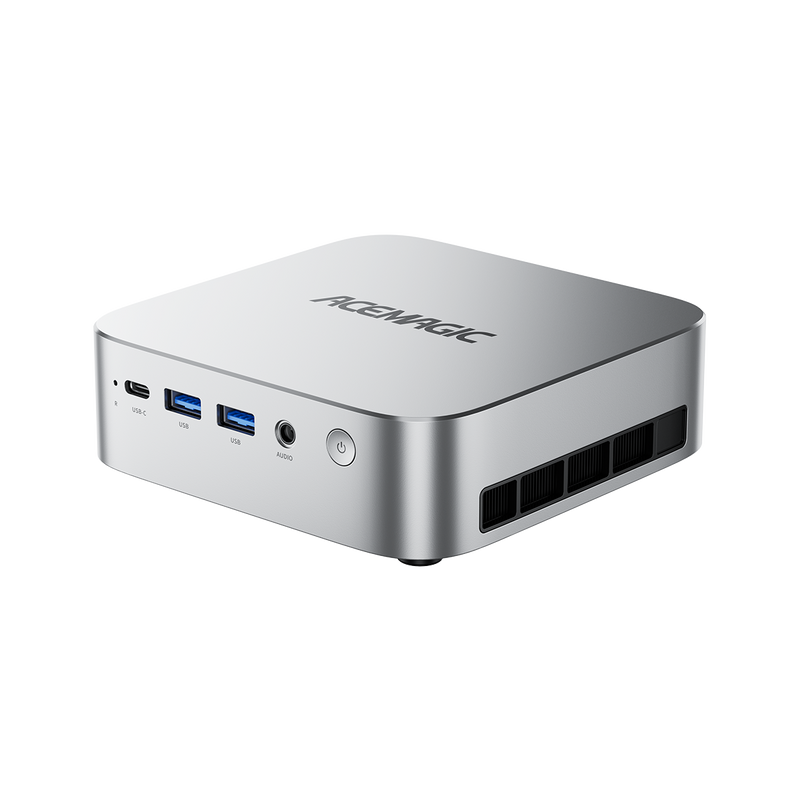

Ports & ButtonsFront:
1× USB4 Type-C
2× USB 3.2 Gen2 Type-A
1× 3.5mm audio jack
1× Power button
1× reset button

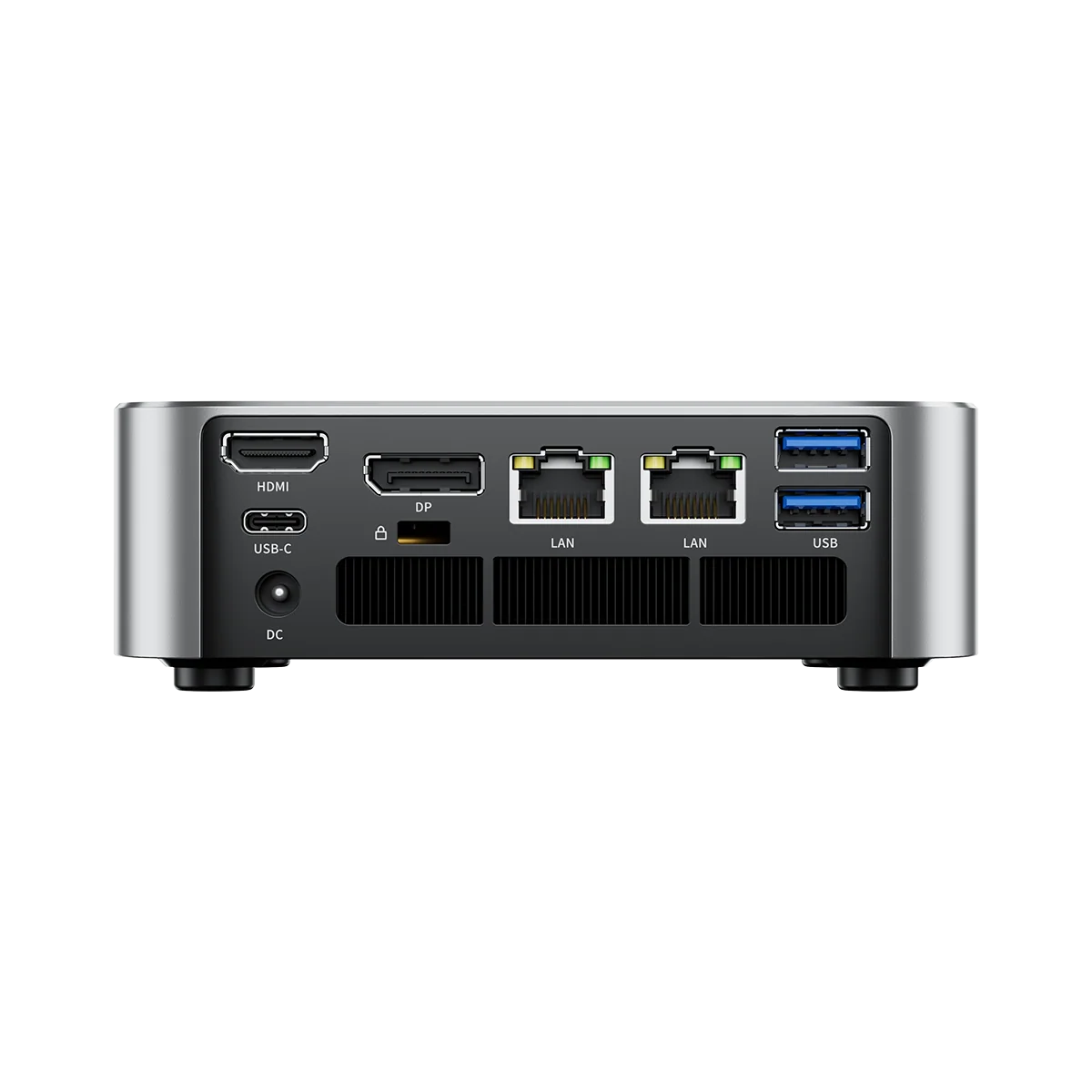

Rear:
1× HDMI 2.1 TMDS
1× DP 2.1
2× 2.5GbE LAN
1× Full-featured USB-C (20Gbps, PD 100W, DP1.4)
2× USB 3.2 Gen1 Type-A
1× DC-in
1× Security keyhole

Base Configuration

PowerDC 19V / 6.32A, 5.5×2.1mm connector, up to 65W TDP design
SystemWindows 11 Pro pre-installed, Linux / Ubuntu supported
Dimensions128 × 128 × 37 mm (excluding rubber feet)

Features

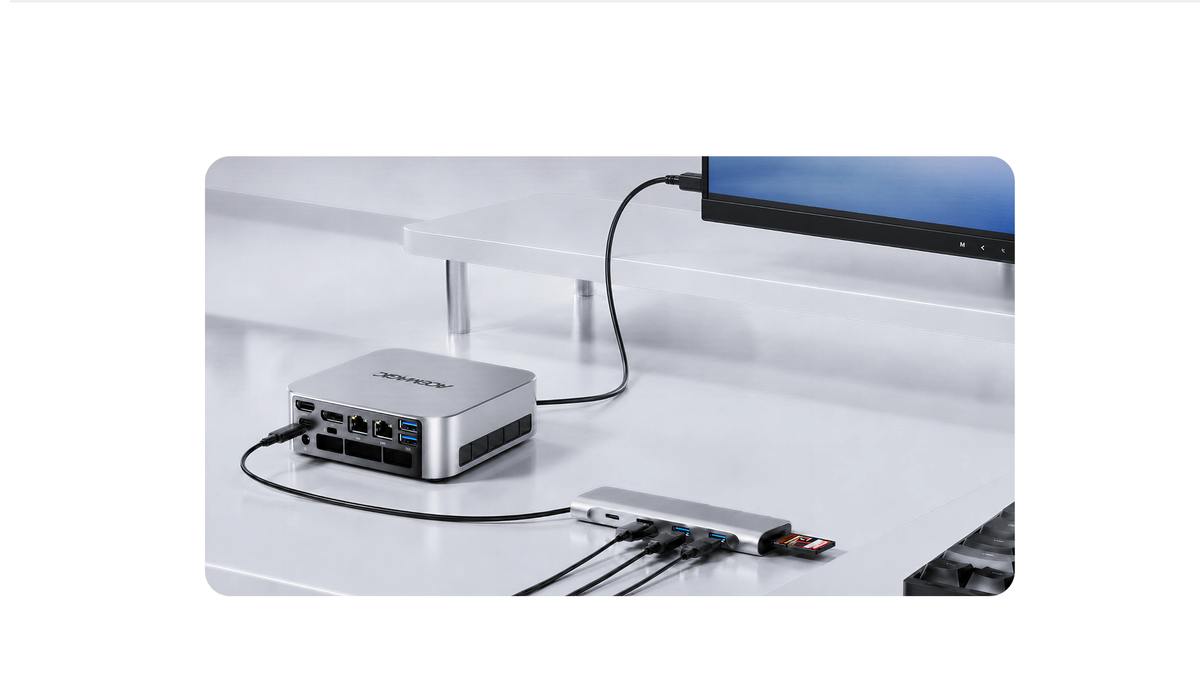

FeaturesSupports quad-display output with 4K/8K resolution capability (HDMI 2.1 TMDS + DP 2.1 + USB4 + Full-Function USB 3.2 Gen 2 Type-C)
Delivers powerful 180 TOPS AI computing performance (CPU + GPU + NPU collaborative processing)
TDP25-65W (PL2 65W, PL1 54W )
Max Design Power: 65W
Stable Sustained Power: 54W
Low Power Mode: 25W
