AlgoLaser Alpha 22W Output 45mm Acrylic Laser Cutter Air Assist Off-line Control 400mm/s DIY Woodworking Paper Cutting Engraving Machine
AED 4,999.00 AED 4,999.00
1. Allows one pass cutting for 10mm Acrylic, 12mm Basswood Plywood, 15mm Paulownia Wood, 10mm White Oak, 10mm Bamboo, 6mm MDF, 0.1mm Stainless Steel.
2. Allows maximum cutting thickness of 45mm Black Acrylic, 20mm Basswood Plywood, 12mm MDF, 20mm White Oak.
3. Finish a 210*280mm image in just 36 minutes, while others require 360 minutes!
4. Support 500+ shades of color for engraving on stainless steel.
5. Integrated air pump for better performance and maintaining the service life of your laser head.
Description
AlgoLaser Alpha 22W
The Strongest 22W Cutting Monster
Great Partner for Diverse Engraving and Cutting Jobs
The 2nd Generation COS Optical Technology
Adopting the advanced second-generation COS technology, the polarized beam combination improves the performance of the laser beam by 40%. Compared to regular 20W laser modules, COS Technology compresses the laser spots from a rectangle to a square having a near 1:1 ratio on both low (3%) and high power (100%).
Enrich your Artwork with 500+ Shades of Color
Make your projects stand out with vibrant and durable colors created by oxidation of stainless steel material while engraving.

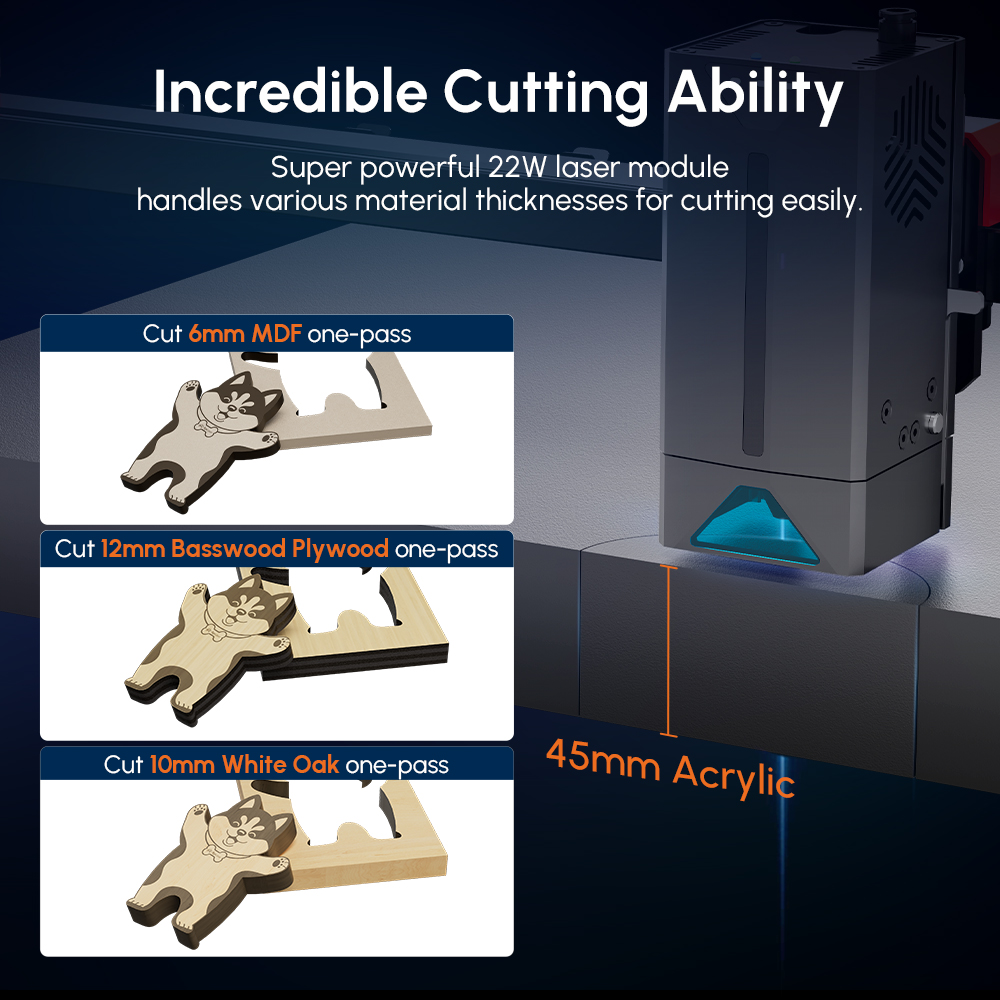

Incredible Cutting Ability
Dual-Core CPU
Deliver significant speed boost, achieving an impressive 32% higher CPU performance and 50% improved computing power.
Load your files 80% faster than other via FIVI 2.4G.
10 X Faster Actual Engraving Speed
Plug & Play Smart Air Pump
Automatic airflow adjustement based on the speed and power.
Directly Controlled through the Algolaser App, Lightburn and LaserGRBL software.
30% Airflow – Engraving
100% Airflow – Engraving

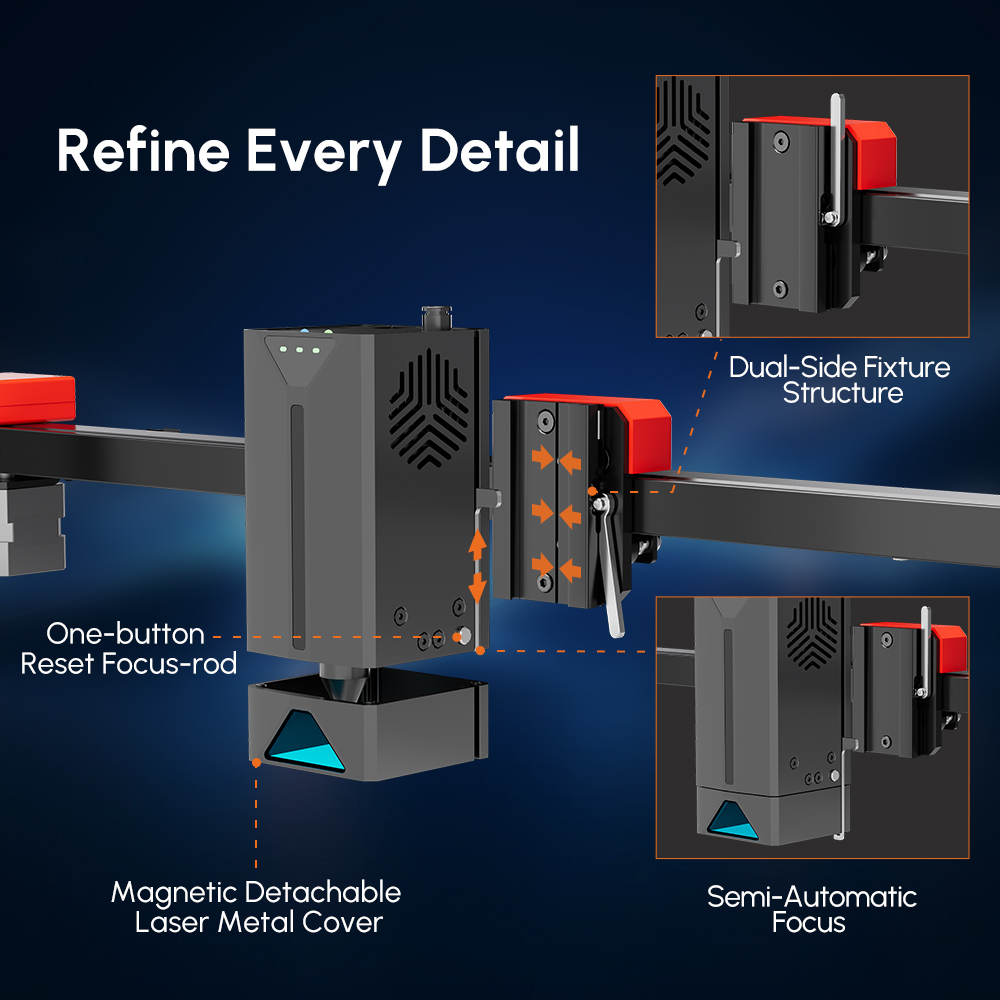

Refine Every Details
Multiple Security Protection
Multiple Connections and File Supported
Wireless Mode
App, Wifi, SD Card
Wired Mode
USB-C Serial Port
Hardware Features
I/O Ports
USB-C port for Serial communication
Smart Connect port – Plug&Play connect to AlgoLaser Accessories
24v Input port.
Premium Cable Management
Built in Strong Metal clamps to hold both Air assist and the Main Harness to your machine.
Smart Connect
AlgoLaser Smart Connect Port. One connector for all your AlgoLaser Accessories. The machine will automatically recognize what was plugged in, avoiding any configurations on firmware.
Built-In Air Hose
AlgoLaser Alpha comes out of the box with a Air Assist pre instalation. All required is to connect the AlgoLaser Air Pump (provided with the AlgoLaser 20W Laser module) to have full control on your Air Source.
X Axis Belt Tensioner Adjuster
Easy, strong and accurate belt adjustment ports for your belt on the X axis. No longer necessary for external tool to maintain your machine in top shape!
Emergency Stop Switch
E-Stop (Emergency stop) button is used to stop all motion in an emergency.
Safety Key Switch
Using the key you can set your Algolaser in Locked position. Preventing any unauthorized use of the machine.
Power Button
Single RGB Button allows full control and feedback of your AlgoLaser Alpha.
Stainless Steel Laser Clamp
Single action and strong level clamping mechanism for the laser engraving. Strong and quick positioning of your laser module on the machine. Support up to 50 000mm/min in speeds.
Y Axis Belt Tensioner Adjuster
Easy, strong and accurate belt adjustment ports for your belt on the Y axis. No longer necessary for external tool to calibrate both your Y belts!
