SCULPFUN S30 Pro Max Laser Engraver, 20W Optical Power with Automatic Full Air Assist Kit, Cut 10mm Plywood in One Pass, with Replaceable Lens Design and Limit Switch, Engraving Area Expandable
- Brand: Sculpfun
AED 5,599.00 AED 5,599.00
In Stock

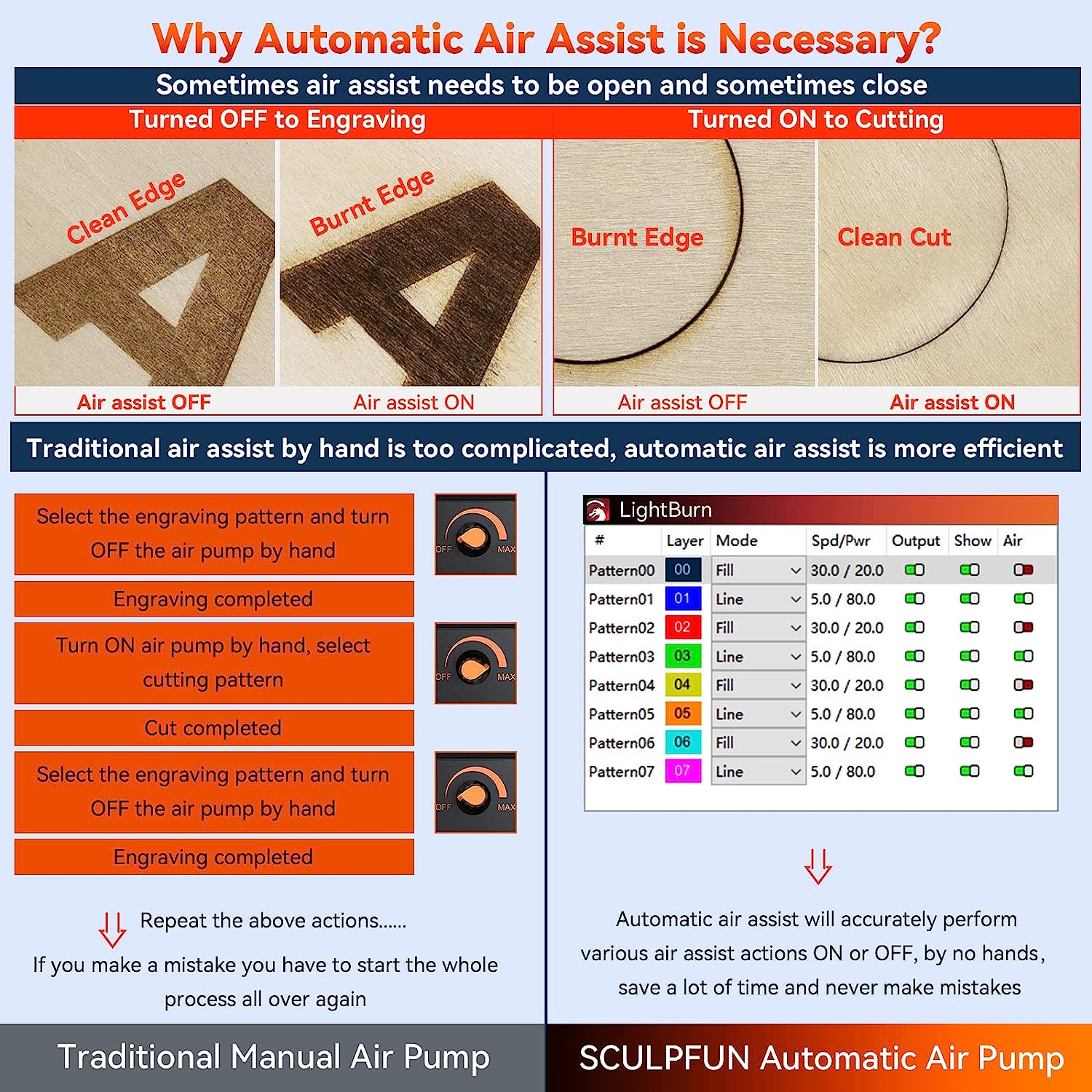

- 【Automatically Controlled Air Assist System】SCULPFUN S30 Pro Max is equipped with an air assist 32-bit motherboard and a full air assist kit, including a high pressure air assist nozzle and a control-type air pump. Through the LightBurn software M8 button, it can intelligently control the air-assist switch off when engraving and on when cutting to free you from manual switching and make your works very clean. It is very suitable for the manufacture of exquisite gifts.
- 【Ultra-thin 20W Laser Output】SCULPFUN S30 Pro Max laser engraver adopts ultra-thin laser shaping technology, the 0.08x0.1mm laser focus is as thin as hair, very powerful for engraving or cutting. The 20W laser pursues the ultimate cutting speed, suitable for professionals, shops or factory. It can cut 15mm Balsa wood or 10mm plywood in one pass, and can colorize your metal laser engraving.

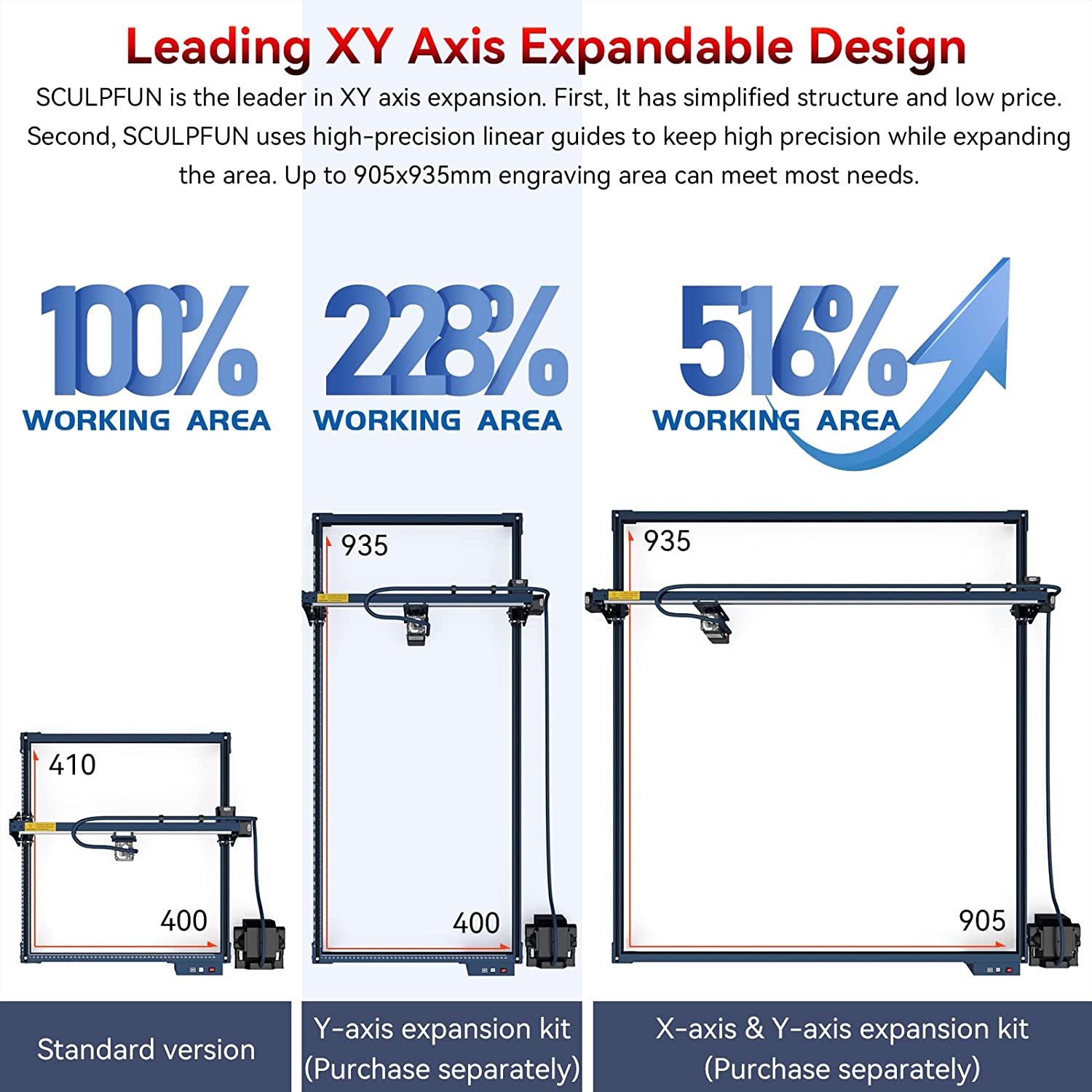

- 【Expandable Engraving Area on Both XY-axis】SCULPFUN S30 Pro Max laser engraving machine adopts an innovative XY axis expandable design, the original engraving area is about 410x400mm, but you can purchase a Y-axis expansion kit to expand the engraving area to 935x400mm; purchase an XY-axis expansion kit to upgrade Up to 935x905mm huge engraving area, which can help you better handle large area engraving or cutting work.
- 【Industrial-grade Cutting Accuracy】S30 Pro Max laser cutter adopts extremely solid and high-precision linear slide rail X-axis, making it reach industrial-grade engraving accuracy. When comparing small engraving details, it does not have the wavy pattern that appears in ordinary engraving machines. And the machine frame is made of high-strength aluminum alloy, very durable and stable, which also ensures high precision.
- 【Replaceable Protective Lens】SCULPFUN S30 Pro Max laser cutter and engraver adopts innovative replaceable lens, which greatly improves the service life of the laser. When the lens is damaged or after long-term use, just replace it to restore the cutting power. It contains one extra lens, and an XY limit switch device for achieving homing or positioning function.
AED 5,599.00 AED 5,599.00
Standard Delivery Timeframe: 5-7 Working Days
Description
Why Choose SCULPFUN S30 Pro Max Laser Engraver
- Automatically Controlled Air Assist System
- True Ultra-thin 20W Laser Output, cut 15mm Balsa wood in one pass
- Expandable Engraving Area on Both XY-axis
- Industrial-grade Cutting Accuracy
- Replaceable Protective Lens and XY limit switch
Operating software: LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Note: The automatic air assist function only works with lightburn, lasergrbl is not supported.
High-precision Linear Slide Rail X-axisThis high-precision linear slide rail X-axis can effectively prevents the wavy pattern that appears in ordinary engraving machines. | Full Automatic Air Assist SystemIt is equipped with an air assist 32-bit motherboard, a high pressure air assist nozzle, a control-type air pump and tube. | Protective Eye ShieldThe detachable eye shield will protect your eyes from dazzle even without glasses. Also if you don’t need it, you can easily disassemble it. |
Replaceable LensAfter long use, you can replace the lens to restore the cutting power and improve the service life of the laser. We provide 1 extra lens. | Limit SwitchThis SCULPFUN S30 Pro Max contains a XY limit switch device for people who wants to achieve homing or positioning function. | XY-axis ExpandableNot only the Y-axis, SCULPFUN also innovatively designed the X-axis extension shaft. After purchasing additional accessories, you can get a up to 935x905mm huge engraving area. |
Precautions:
- Because of the powerful laser power, it is forbidden to run the engraving machine without being supervised. Pause it if you’re not around.
- For detailed machine instructions, please refer to the manual for parameter settings.
- When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear goggles.
- Do not touch the laser with your hands, otherwise you may burn your hands.
- Please avoid strong impact on the machine.
- It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult supervision.
- Do not apply the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.
Specifications
Product Model: | SCULPFUN S30 Pro Max |
Diode laser output power | 20W (note that this is light energy not electrical energy) |
Laser focus: | 0.08×0.1mm |
Laser wavelength | 455±5nm |
Focusing method: | fixed focus column + sliding device |
Engraving accuracy: | 0.005mm |
Engraving area size: | the standard version is 410*400mm, which can be expanded to 935x400mm or 935x905mm (Upgrade Kit sold separately) |
Engraving material: | all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone |
Air pump: | mainboard-controlled air pump, voltage 24V, flow 30L/min, Air hose inner diameter 7.5mm |
Motherboard: | 32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately) |
Power Input: | 100-240V AC, 50/60HZ Output: 24V 5A |
Certification: | CE FCC RoHS FDA ICE certification |
Packing weight: | 7.53kg |
Packing size: | 62.3*24*22.5cm |
Laser protection cover: | Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles. |
Cutting material: | all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards |
Specifications
Additional information
Weight | 7.74 kg |
---|---|
Dimensions | 56.01 × 51 × 26.49 cm |
