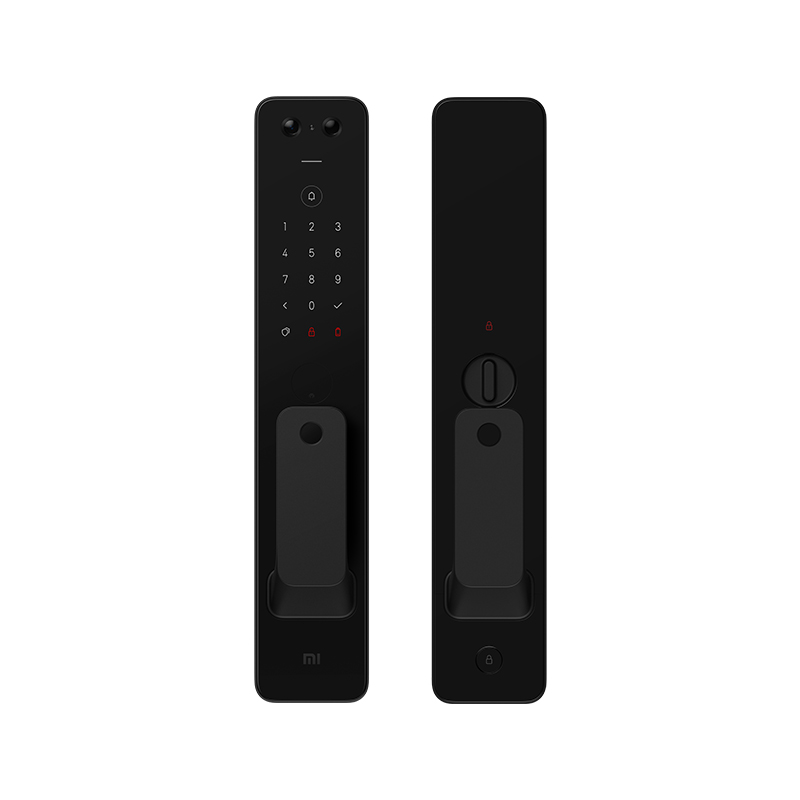

Xiaomi Fully Automatic Smart Door Lock Pro Doorbell Camera 172° Ultra-Wide Angle 2.3 Million Pixels Fingerprint Recognition App

Please note: This is a Chinese version of the product and currently only supports connection to the Mi Home App with mainland China as the service area.

This smart door lock requires dry batteries for power supply.

Main Features

* Intelligent fully automatic lock body, fast and worry-free

* 172° ultra-wide-angle camera, 2.3 million high-definition camera, infrared night vision

* Abnormal video recording in front of the door, voice-changed video calls through Mi Home App, and door status can be checked at any time

* Inductive electronic doorbell, the doorbell automatically wakes up and lights up when a guest comes, and guides visitors to press the doorbell in a dark light environment

* Seven unlocking methods, more convenient

* Multi-dimensional semiconductor fingerprint recognition, the recognition rate can reach 98.94%

* Different passwords can be set for different family members

* AI humanoid detection video recording, effectively reducing missed shots

* Dual batteries provide independent power supply, and the door lock camera does not affect each other when used

Detailed parameters

Xiaomi fully automatic smart door lock Pro

Three-in-one door lock, doorbell, and camera, more comprehensive and convenient

High-end fully automatic lock body | 172° high-definition wide-angle camera | induction electronic doorbell

Fully automatic power system, unlocking and opening the door, fast and convenient

Fully automatic lock body: the detection tongue is all metal and the scissor tongue

New automatic lock body: ① The detection tongue is added with plastic coating ② The flipping tongue is added with plastic coating

*New and old lock bodies are shipped randomly.

170° ultra-wide-angle camera, wider picture and field of view

172° super wide angle, 2.3 million high-definition camera, 16:16 image sensor, getting rid of the limitation of horizontal and vertical images, and a wider monitoring range.

*16:16 is 1:1, the camera resolution is 1536*1536, infrared night vision

Remote real-time monitoring, video calls with visitors can also use the voice changing function

It supports connecting to the Mi Home App. You can remotely check the door status through the app, and you can also make video calls with visitors. It is safer to use the voice changing function at home alone.tookfun

*Real-time viewing mode needs to be set to always on in the plug-in. After turning on, the power consumption will increase and the lithium battery life will be reduced by 1-2 months. Battery life will vary depending on ambient temperature, number of triggers, router brand, and usage mode.

Inductive electronic doorbell, the doorbell light will automatically light up when it senses someone.

The doorbell automatically wakes up and lights up when guests arrive, and guides visitors to ring the doorbell in a dark light environment.

Seven ways to unlock the door

Fingerprint unlocking | Password unlocking | NFC unlocking | Bluetooth unlocking | Homekit unlocking | Temporary password unlocking | Emergency key unlocking

Multi-dimensional semiconductor fingerprint recognition, multi-dimensional algorithm recognition is more accurate and safer

Fingerprint recognition is performed through multiple dimensions such as fingerprints, skin, conductivity, etc. The recognition rate reaches 98.94%.

Different members can set different passwords

1. Long-term effective password: suitable for family members, supports virtual passwords to prevent peeping

2. Temporary password valid for a period of time: suitable for regular door-to-door nannies

3. One-time valid temporary password: suitable for temporary visits by friends

*Long-term password: supports adding 20 users and creating 50 sets of passwords.

*Dummy password: Enter up to 20 digits of fictitious password, as long as it contains 6 consecutive correct passwords

You can open the door to prevent others from peeking.

*Long-term password, periodic temporary password: can only be created when the mobile phone is connected to the door lock locally through Bluetooth.
One-time temporary passwords can be created remotely.

Full keyboard NFC unlocking, the sensor recognition range is expanded, and NFC unlocking is more usable

*The NFC identification area is integrated with the keyboard. When the device is close to the door lock, it can be unlocked quickly through induction recognition.

Support NFC unlocking devices: Redmi Note, Xiaomi MIX4, Xiaomi Civi, Xiaomi 12/11

series, Redmi K50/K40 series; Xiaomi bracelet 7/6/5/4/3 NFC version, Xiaomi watch,

Xiaomi Watch Color, Redmi Watch, MiTu Children’s Learning Watch 4/4Pro, Xiaomi Smart Door Lock NFC Card Global Version.

*Xiaomi Watch only supports the Android version, and the iOS version is temporarily not supported.

*Mobile phone NFC only supports Xiaomi and Redmi brands. (Products will be added one after another, please pay attention to the official website for details)

Supports connecting to HomeKit unlocking

*Supported devices: iPhone, Apple Watch, etc. It is recommended to use the latest version of iOS or iPad OS.

*When Siri voice unlocks, you need to unlock the iPhone screen first.

High security

AI humanoid detection video | Six abnormal video alarms | Multiple safety protection | Dual battery independent power supply

Al humanoid detection video, people outside the door trigger video, support remote viewing

The door lock is equipped with a human body sensor, which can record the video after identifying a person outside the door. It is equipped with an intelligent AI humanoid detection algorithm to effectively reduce missed shots. The video is uploaded to cloud storage, and there is a 3-day free cycle storage service, so you can check the video at any time.

Multiple safety protections

Duress fingerprint alarm | Arming when leaving home | Mijia Apple dual security chip | Comprehensive status detection of lock body | Direct plug-in C-level lock cylinder | Dual induction door opening | Emergency unlocking | Child lock design

*After the child lock is turned on in the Mi Home App, only the emergency knob can be used to open the door indoors, and the anti-lock function will be disabled to prevent children from accidentally locking the door.

*Duress fingerprint function, arming when leaving home; used with Bluetooth gateway device, it can turn off home appliances when leaving home, enable camera monitoring and arming in the house, etc. The linkage device and Bluetooth gateway need to be purchased separately.

Six door lock status reminders

Abnormal status door lock local and App remote alarm reminder, start recording simultaneously, Mi Home App can remotely view the recording at any time.

Doorbell reminder | Alarm when the outer panel is pried | Someone is staying in front of the door | Coerced fingerprint unlocking | Multiple trial and error unlocking | Opening the door in the armed mode

*The function of remotely checking the door lock status needs to be used with a device with a Bluetooth gateway, which needs to be purchased separately.

*The door lock will sound an alarm when the outer panel is separated from the door.

Dual batteries provide independent power supply, and the door lock camera does not affect each other when used.

The door lock is powered by 8 dry batteries, and the camera is powered by a rechargeable 5000mAh lithium battery.

The door lock has a battery life of up to 12 months, and the camera has a battery life of up to 3-5 months.tookfun

*Local reminder when the battery is low, remote reminder needs to be used with a device with Bluetooth gateway function.

*The emergency power supply port at the bottom of the outer door panel is connected to the power bank for emergency power supply.

*The camera stops working after the door lock runs out of power.

Xiaomi IOT and Apple Homekit dual chips, multi-screen linkage camera call

Supports connecting to Mi Home App or Homekit

Supports linkage with other XIAOMI smart devices to achieve whole-house linkage. Connect to the Bluetooth gateway, turn on the lights when entering the door, and turn off the appliances when leaving home.

*The linkage of smart devices to achieve functions such as turning on lights when opening the door requires connection to a Bluetooth gateway. Other related linkage devices and Bluetooth gateways need to be purchased separately.

Package List

Front panel*1

Rear panel*1

Lock body*1

Lock core*1

Door buckle plate*1

Accessory package*1

Emergency key*1

Installation hole drawing*1

Instruction Manual*1

Lithium battery*1（Lithium batteries are used to power cameras. Some countries cannot transport pure electric products. Please consult store customer service before purchasing.

Instructions for use front panel

CommentLight sensor: Do not block the sensor area to avoid affecting normal use.

Verification result indicator light strip: white light indicates successful verification, flashing red indicates verification failure;

Dual verification: On means it is on, off it means it is off;

Battery alarm: Flashing means the battery is low, turning off means it is normal.

Lock indicator light: The red light flashes to indicate that the door is not closed/the door is not locked, and the white flashing light indicates that the door is locked;

Determine whether installation is supported by yourself:

Installation will not be possible if any of the following conditions occur:

1. The width of the door lock panel is less than 110mm

2. The lock body eccentricity L1 or L2 is less than 17mm

3. For the inner and outer doors, the distance between the door handles is less than 160mm.

4. Wrought iron doors, fence doors, double lock doors, glass security doors, bull head locks, hidden locks, alloy copper doors, mobile doors, folding doors, open-air outdoor doors, etc. cannot be installed; except for the listed special door bodies, There may be other situations where installation is impossible in the on-site environment. Please refer to the on-site judgment.

5. If the filling in the door is made of fragile materials or the door body will produce an acid/alkaline corrosive environment due to chemical reaction with the air, it cannot be installed; for example, the filling in the door is gypsum or perlite, etc.

Precautions for installation and modification

1. Overlord lock body description

This product comes standard with a fully automatic lock body. If the original lock body is a standard lock body, it can be adapted and installed;

If the original lock body is a Bawang lock body, you can use the Bawang guide piece and door catch plate to adapt and install it. The solution is as shown in the figure below.

Accessories required for transformation: 1. Bawang guide piece; 2. Bawang door buckle plate

Modification instructions: 3. Before modification; 4. After modification

2. Description of heaven and earth hook

*Since the fully automatic lock body does not support the top and bottom hooks, if there are top and bottom hooks on the original door, you need to remove the top and bottom hooks from the door for installation to avoid the risk of the top and bottom hooks falling off and causing the door to be unable to open.

FAQ

1. Does it support fingerprint unlocking for children and the elderly?

Theoretically, the fingerprints of children and the elderly can be used to unlock the door, but because the fingerprints of children under 7 years old are not fully developed, and the fingerprints of the elderly are severely worn, the success rate of unlocking may be reduced and the user experience may be affected.

2. What should I do if the fingerprint recognition is not sensitive?

Please make sure there are no stains on your finger and keep it dry, and press your finger completely on the fingerprint recognition area and try again. Or re-enter a fingerprint, try to increase the input area during the input process, and use the area input at that time during recognition.

3.What is a dummy password?

A dummy password refers to adding any random code before or after entering the correct unlocking password. It supports up to 20 digits to prevent others from peeking when entering the password.

4. What should I do if I forget the unlocking password?

① If the user or administrator password is forgotten, you can use the mobile phone bound to the door lock to directly connect to the settings.

② If there is no mobile phone bound to the door lock and the administrator password is forgotten, the door lock needs to be reset. The reset button is under the dry battery on the inner panel of the door lock. Press and hold for 3 seconds to verify the administrator’s fingerprint according to the door lock prompts.

5. How long does it take to charge the lithium battery?

The lithium battery of the Xiaomi fully automatic smart door lock Pro supports 5V/2A input. After the power is exhausted, use the 5V/2A output power adapter with the original charging cable to charge. It will be fully charged in about 4-5 hours. It may exceed this parameter. It will lead to battery damage or dangerous situations. During the charging process, the door lock can still be used to open and close the door when powered by dry batteries.

6. Can the door lock still work after the lithium battery is discharged?

① Lithium batteries are used to power Wi-Fi, cameras and other functions, and dry batteries are used to power door locks and other functions.

②After the lithium battery is exhausted, the camera, human body sensor, and Wi-Fi functions will be deactivated.

③When the dry battery is charged, the door lock can still verify the door opening. When the dry battery is exhausted, all functions of the door lock including the camera will be disabled.

④ When the battery is exhausted, you can use the emergency key or power bank to temporarily power the door outside the door, and you can use the emergency knob to open the door or replace the battery inside the door.

7. Why do door locks need to connect to Wi-Fi when connecting to Bluetooth? What functions do they support?

① First, the Bluetooth function ensures the connection between the door lock and the mobile phone to complete the fingerprint and other settings. Secondly, the door lock Bluetooth is connected to the Bluetooth gateway, and smart devices are added to achieve intelligent linkage throughout the house. In addition, in order to save power, the door lock and door status is also reported through the low-power Bluetooth module. The communication mechanism based on Bluetooth devices requires a device with Bluetooth gateway function as the hub, so that the door lock status can be viewed in remote mode.

②Wi-Fi is used for camera networking to achieve remote real-time monitoring, remote viewing of door recordings and other video-related functions.

③ If the door lock encounters a dangerous situation, it will be reported through Bluetooth and also through wifi, such as: the door lock is picked, multiple trial and error attempts to open the door and other high-risk events.

8. If the door is locked, how to open the door outside?

When the door is locked, administrator fingerprint, administrator password, administrator NFC, Bluetooth unlocking and mechanical key unlocking can be used outdoors (the mechanical key is the unlocking method with the highest authority in an emergency. The emergency key can be used under any emergency conditions. The door lock can be opened unless the lock cylinder is damaged).

9. How to use coercion fingerprint unlocking?

The coercion fingerprint function needs to be used with a device with Bluetooth gateway function. Set the coercion fingerprint in advance to add emergency contacts. If you encounter bad guys following you or other dangerous situations, use the preset coercion fingerprint to unlock the door. The door lock will contact the preset emergency contact through the APP. People call the police to increase safety.

10. Does the camera recognize faces inaccurately?

The following scenarios may lead to inaccurate face recognition:

① There is backlighting on the person’s face at the door, and the person’s face in the video is very dark; the darker the face, the more likely it is that the camera’s face recognition will be inaccurate.

② Face the camera from the side. The smaller the angle of the side face, the less accurate the camera recognition will be.

③ People at the door pass quickly, and the blurr their faces are, the less accurate the camera recognition will be.

11. What should I do if the push is too frequent?

①Camera settings-in the recording settings, lower the sensitivity;

② In Notification Management-Camera Notification, select someone to stay and set the stay time to 6 seconds or more.

12. Why is the video captured by the camera in black and white?

The images captured by the camera’s night vision function are black and white. The camera can automatically switch between day and night mode. When the lights in the corridor are dark, it will automatically switch to night mode and the video will be recorded in black and white.

13. Does Xiaomi fully automatic smart door lock Pro support its own storage space?

Xiaomi fully automatic smart door lock Pro does not support memory cards. All shooting content is uploaded to the cloud, with 3 days of free cloud storage. If you need to store it for longer, you can purchase it separately.

14. Can the video be saved when the Internet is disconnected?

Videos cannot be saved during a network outage;

15. Does the camera support 5G Wi-Fi network?

Not supported, supports 2.4G Wi-Fi network.
